Robosense 3.0: Adaptive Robotic Clay Printing

Calibration studies, printing videos, interrupted-print recovery, and scutoid prototypes document live control and its physical results. View evidence ↓

Changing the toolpath during printing

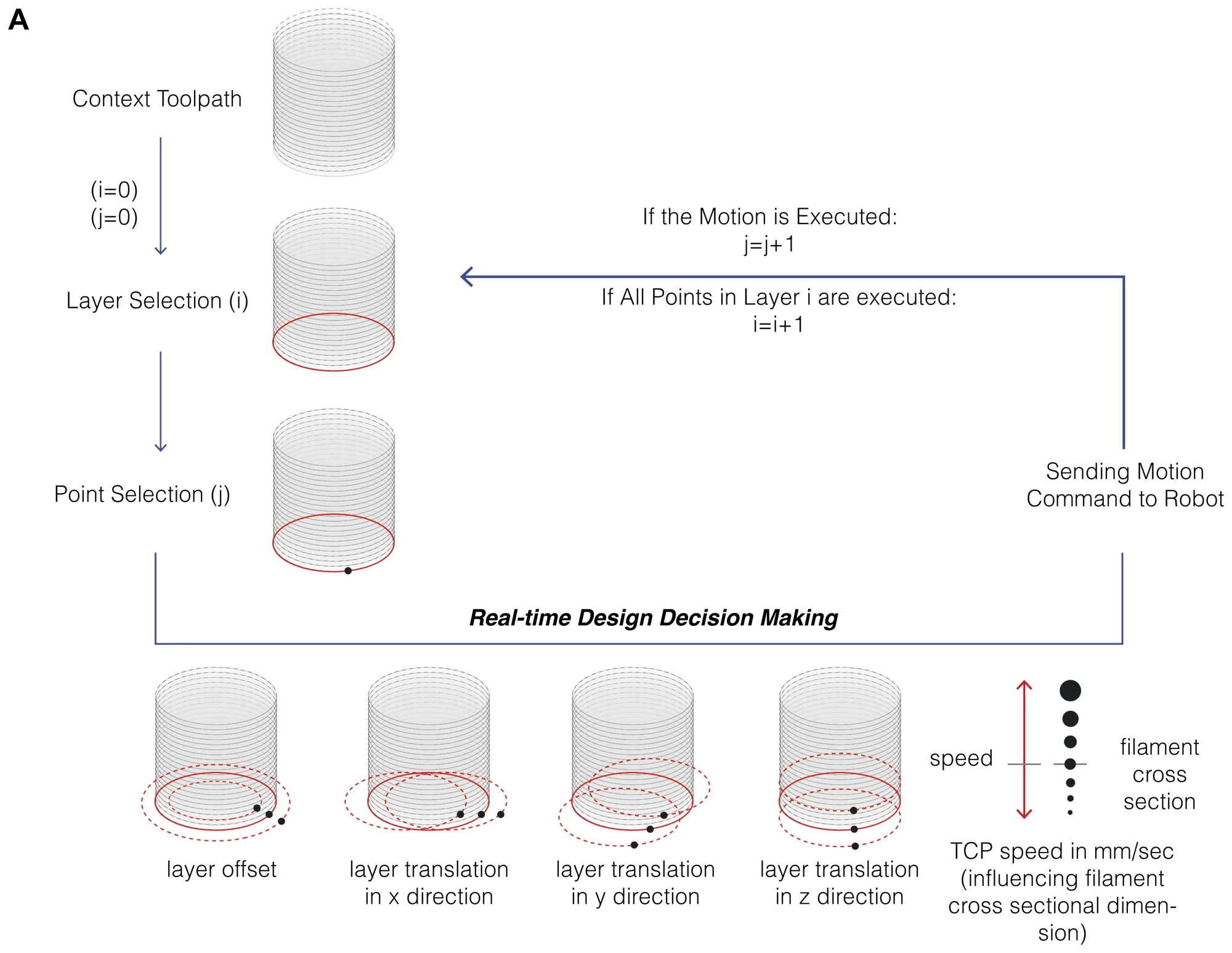

DYNPath sends successive toolpath points from Grasshopper through the MACHINA bridge. Between commands, the designer can offset a layer, translate the path in X, Y, or Z, and change the tool-center-point speed. Updates affect the remaining points in the current layer, allowing the printed form to develop through decisions made during fabrication.

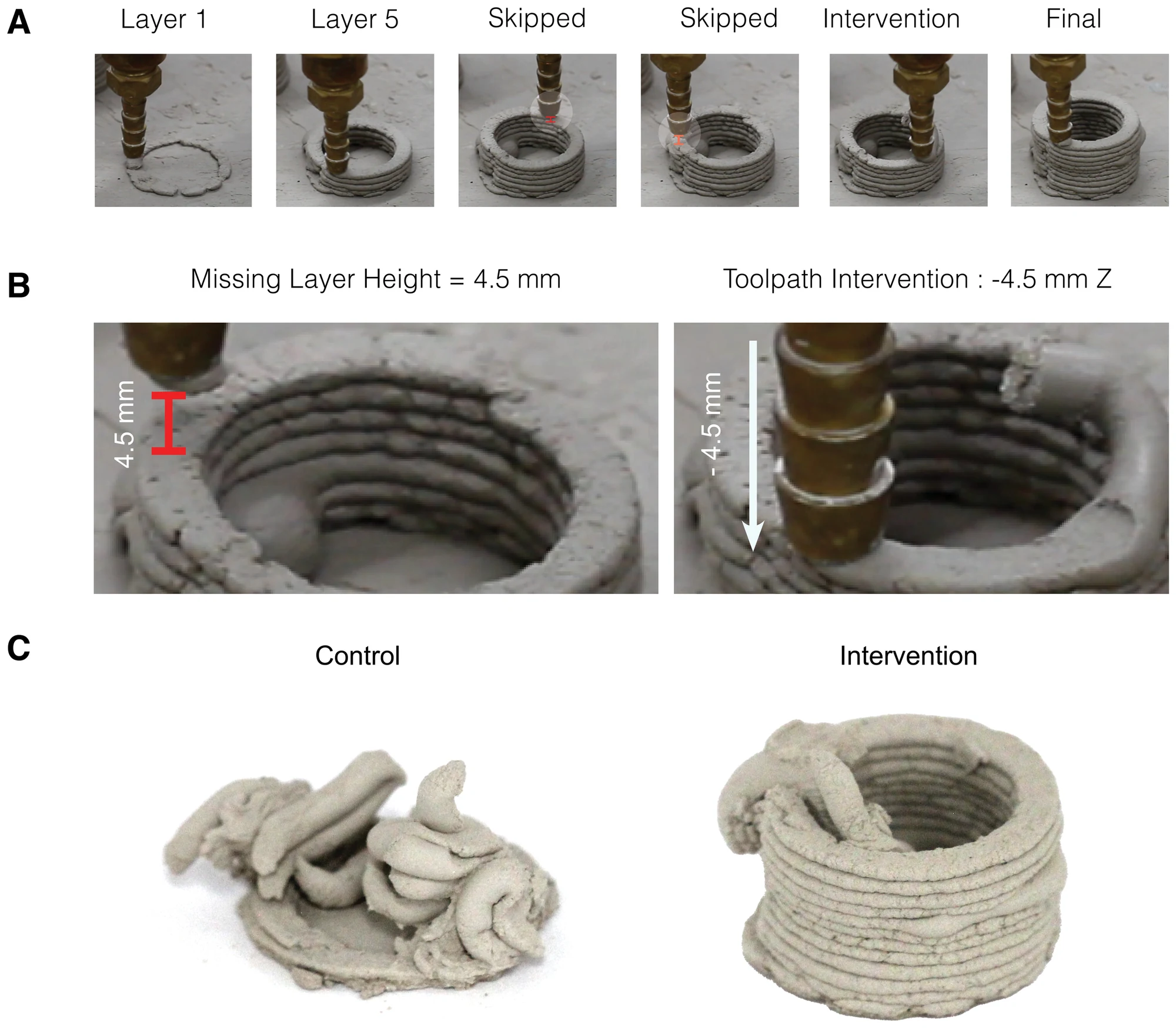

This control also supports print recovery. In the documented layer-skipping test, a 4.5 mm downward correction reconnects deposition with the existing print. Without that intervention, continued extrusion produces an unsuccessful build. The adjustment is made by the designer in response to the observed material condition.

Robosense 3.0: Adaptive Robotic Clay Printing — project image 1

Robosense 3.0: Adaptive Robotic Clay Printing — project image 2

Point-by-point toolpath execution with live offsets, XYZ translation, and speed control (left); recovery of a print after skipped layers (right).

Supplementary recordings show the software-control workflow (left) and robot-mounted clay deposition (right).

Robosense 3.0 develops CERA III, a two-stage robotic clay extruder, together with software for motor calibration and real-time path adjustment. Developed at Cornell University’s Jenny Sabin Lab, the system connects material delivery to robotic motion while keeping the designer able to intervene during a print.

Clay flow varies with moisture, internal pressure, and nozzle conditions. The research addresses these variations through calibrated feeding and extrusion, followed by live corrections or geometric changes in response to the material being deposited.

Separating material supply from deposition

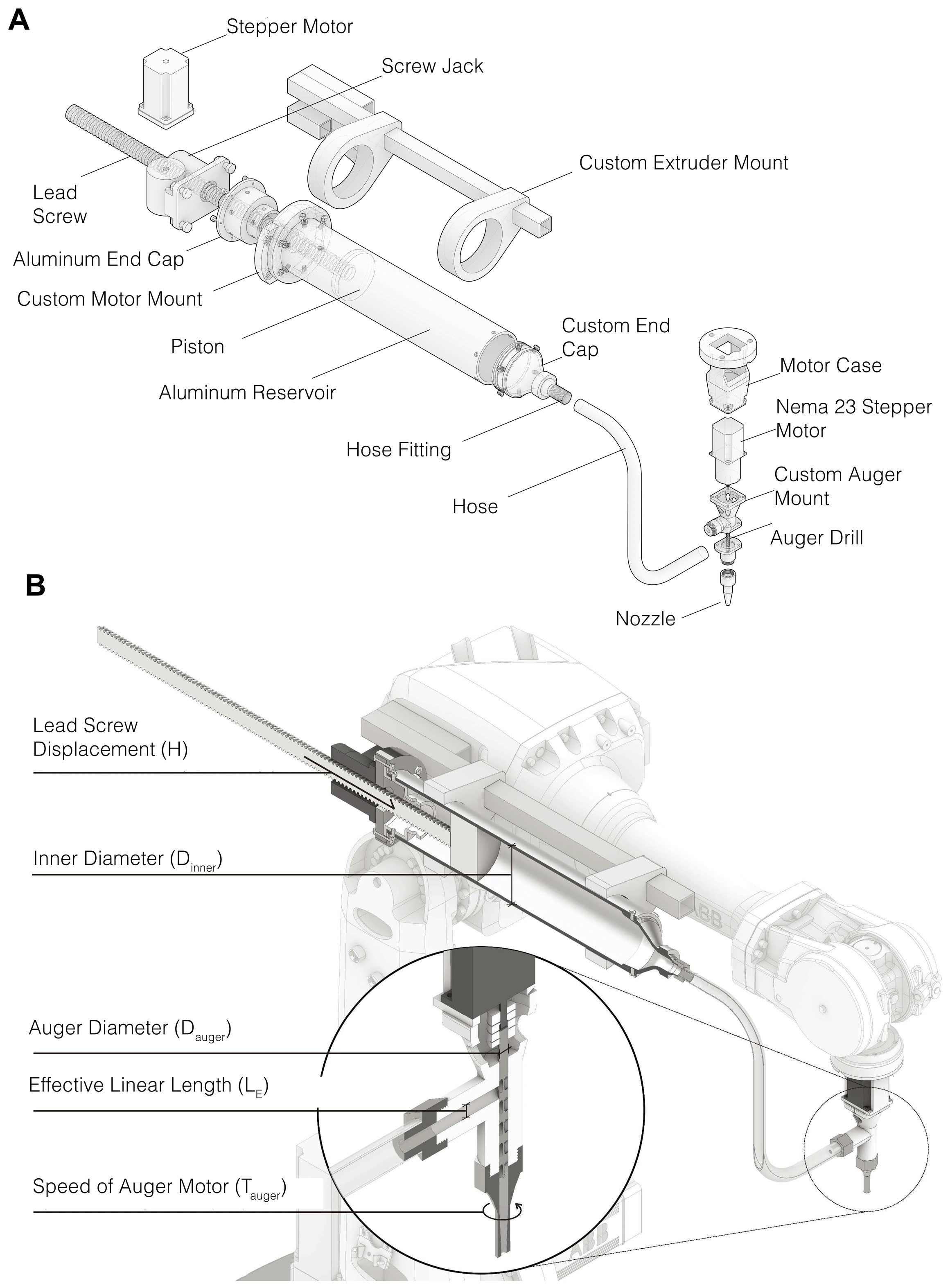

CERA III separates clay delivery into two independently driven stages. A motorized piston pushes material from a reservoir through a hose; an auger mounted on the ABB IRB 4600 meters the clay through the nozzle. This separation gives the system control over both material supply and local deposition.

A worm-gear screw jack increases the piston drive’s torque, while a closed-loop stepper motor stops under excessive resistance. The assembly connects replaceable mechanical components to a parametric calibration model, allowing changes in reservoir, auger, and nozzle dimensions to be reflected in motor settings.

CERA III assembly and robot-mounted configuration (left); travel-speed, nozzle-size, and layer-height calibration studies (right).

Calibrating the flow

PulseControl connects Grasshopper to Arduino firmware for direct adjustment of stepper-motor speed and direction. A volumetric model relates piston displacement to auger rotation so that clay supplied through the hose matches the amount leaving the extruder. The motor settings are then calibrated against the robot’s travel speed and the clay mixture.

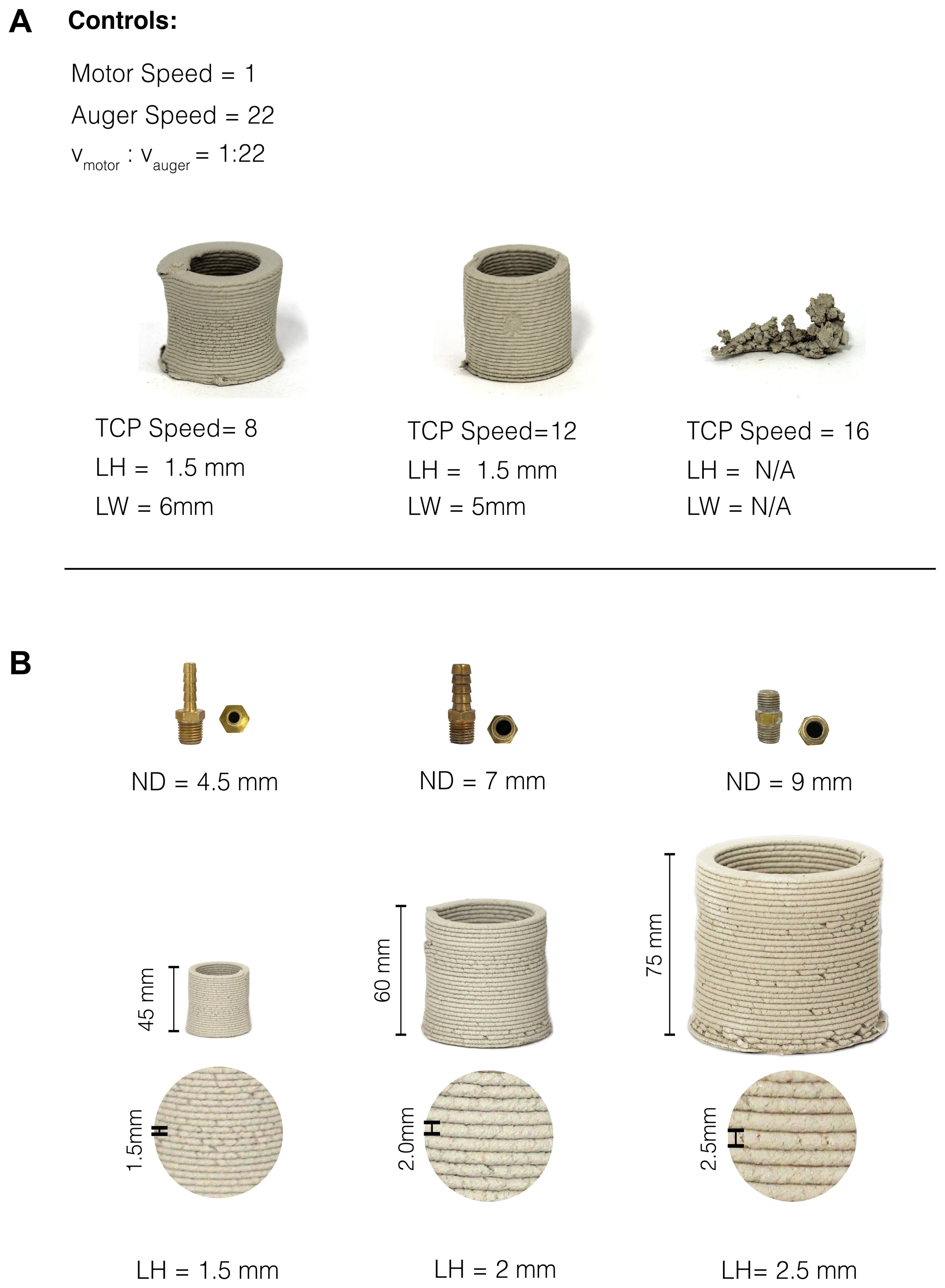

Cylinder tests show how excessive travel speed interrupts deposition, while nozzle tests document bead and layer dimensions across 4.5, 7, and 9 mm nozzle diameters. These tests connect hardware settings to the continuity and resolution of the printed material.

Designing through deposition

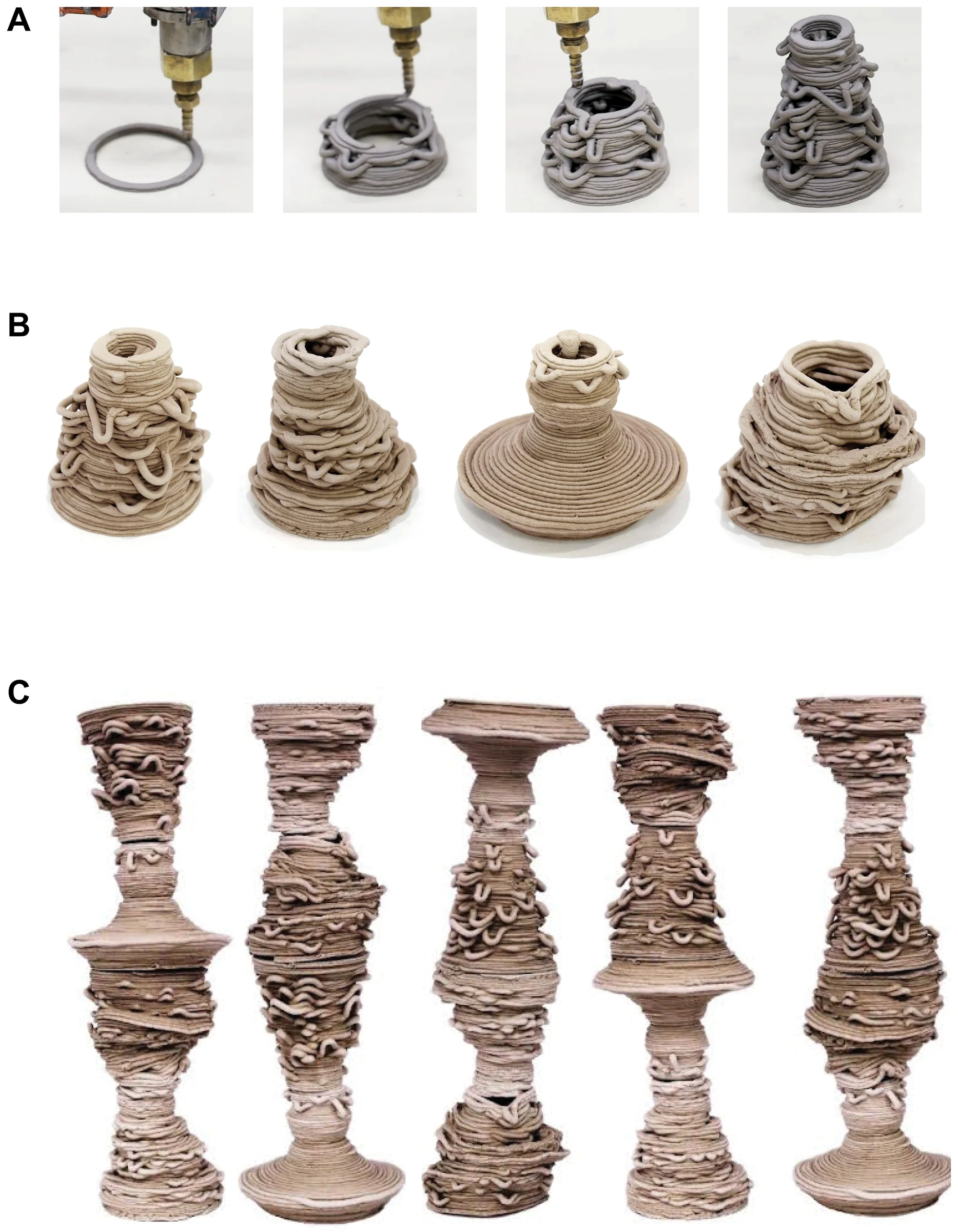

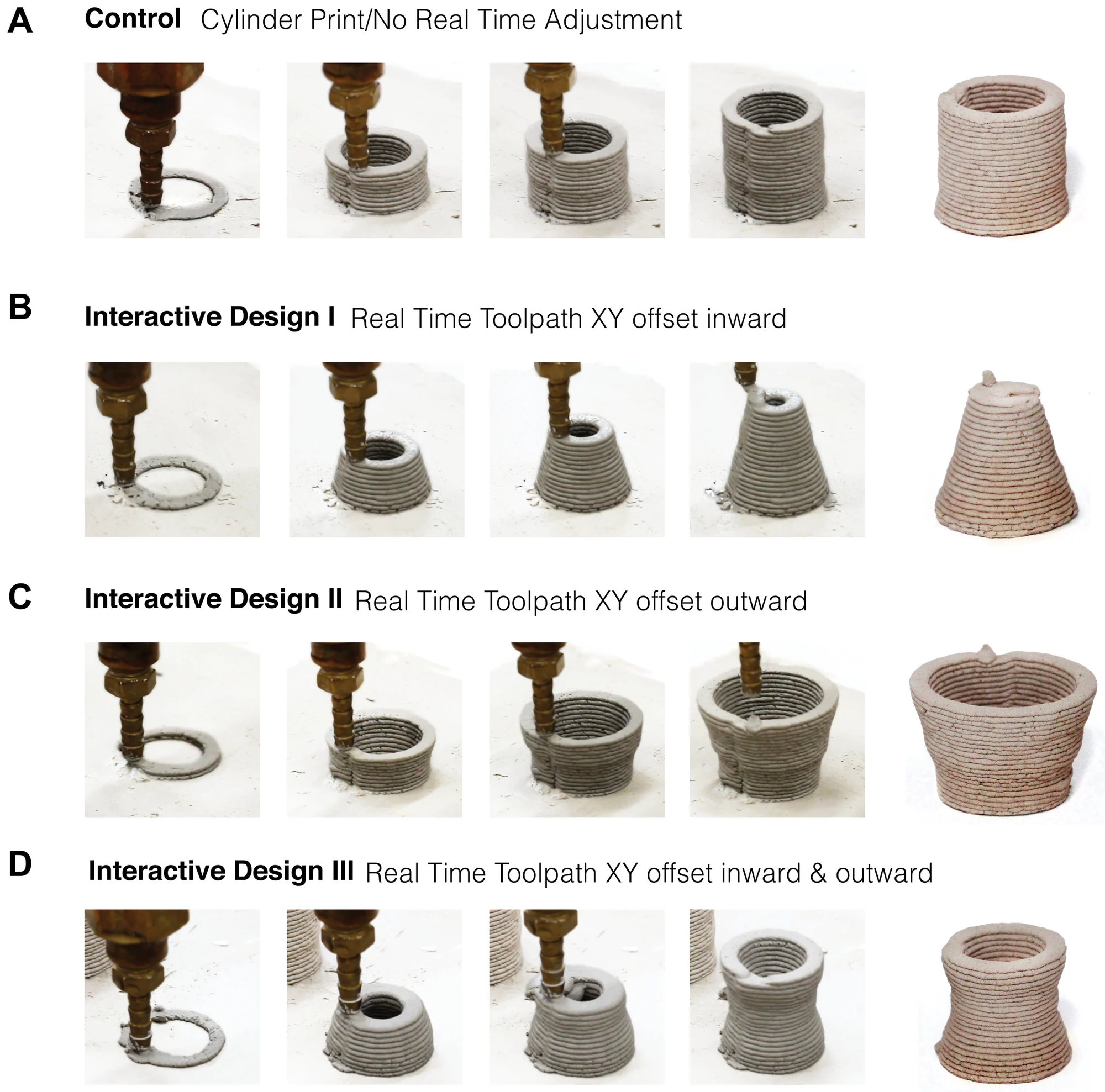

Inward and outward path offsets produce different wall profiles from the same initial cylinder toolpath. Further experiments combine path and speed changes to vary the deposited texture, while a MIDI controller gives designers a physical interface for adjusting the print in progress.

Controlled path variations applied during printing (left); interactive forms and column studies from Digital Impromptu by Mahshid Moghadasi (right).

Architectural components and nonplanar printing

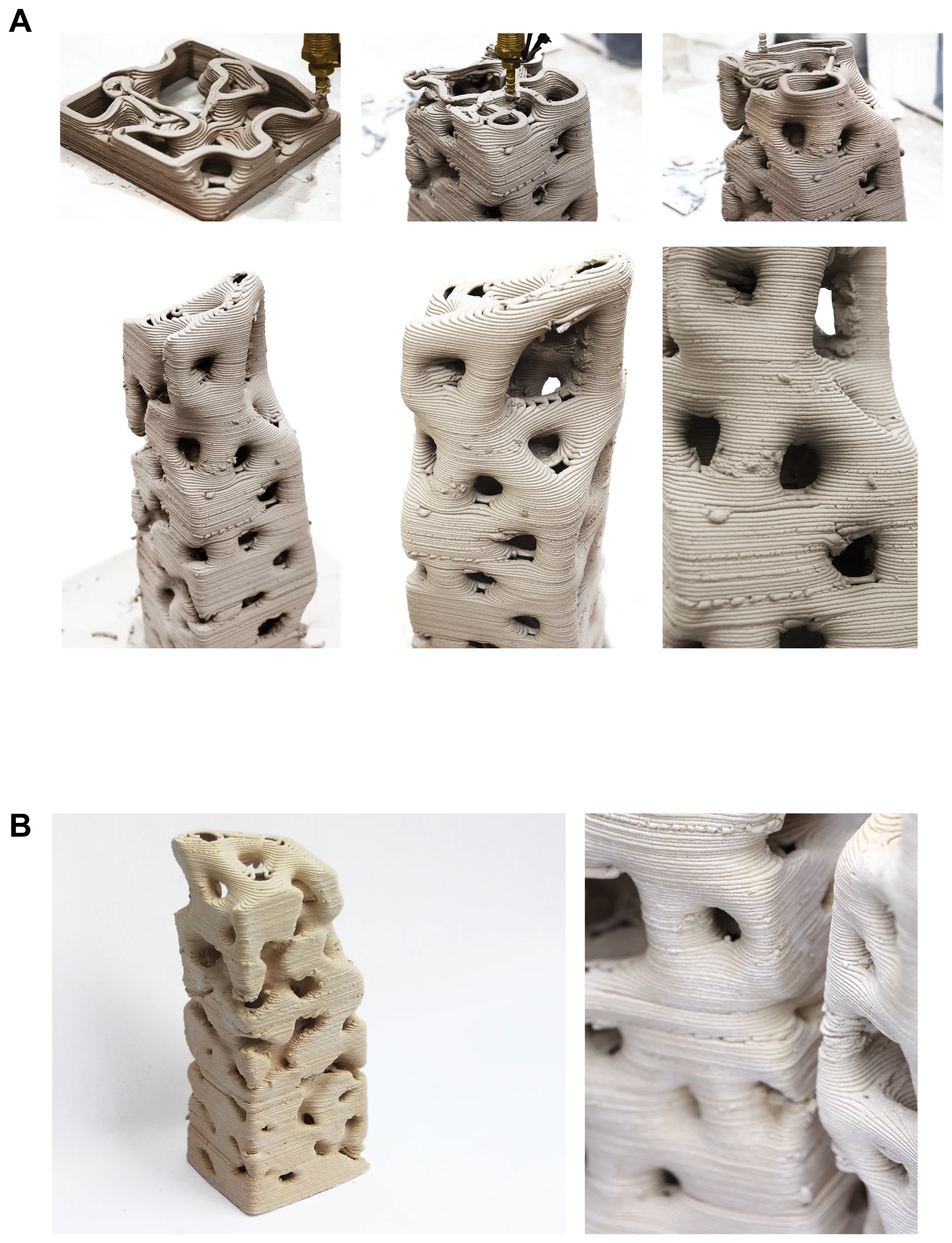

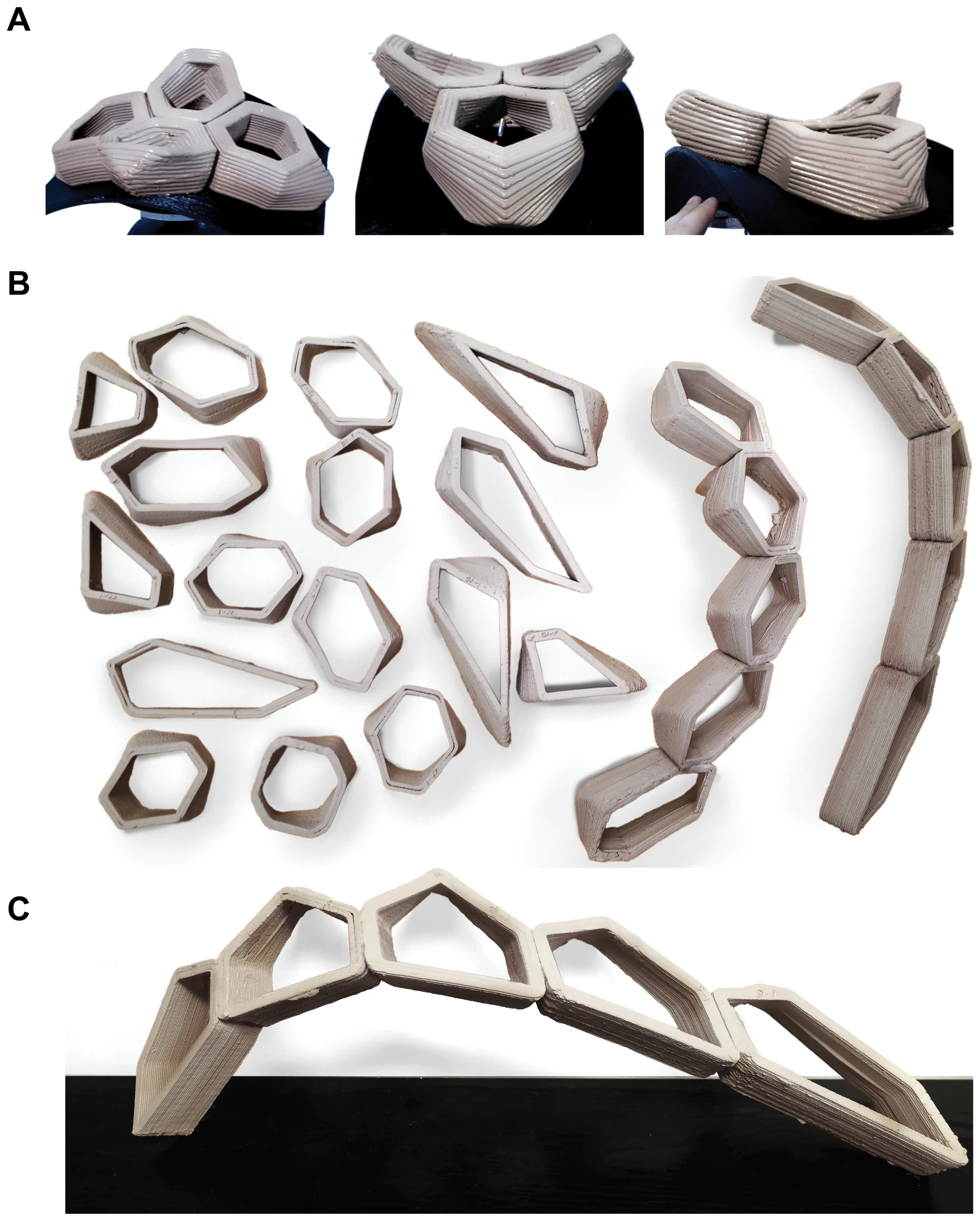

PolyBrick 2.0 tests the system’s capacity to produce porous lattice components through controlled deposition and start-stop sequences. Scutoid experiments use nonplanar toolpaths and the robot’s range of motion to print cell-derived components and curved assemblies.

PolyBrick 2.0 printing and prototypes by Eda Begum Birol (left); nonplanar scutoid prototypes from Interactive Fabrication and Design of Bioinspired Surface Geometry by Teng Teng (right).
