The built prototype, fabrication and assembly images, physical model, and connection studies document the shelter system. View evidence ↓
Floralis is an ETFE-clad timber shelter developed to protect petrified tree stumps at Colorado’s Florissant Fossil Beds National Monument. The prototype explores how a lightweight enclosure can shield fossils from environmental exposure while preserving views for visitors.
A folded funnel shell is materialized as an open polyhedral lattice assembled from sheet-timber layers. Polyhedral graphic statics informs its geometry, while translucent ETFE foil completes the enclosure.
The fabrication workflow transfers geometric data from the structural model to multi-axis CNC milling. Individually mitered timber pieces and aluminum channels accommodate the changing angles of the shell. Articulated secondary connections attach the ETFE support channels to the timber frame.

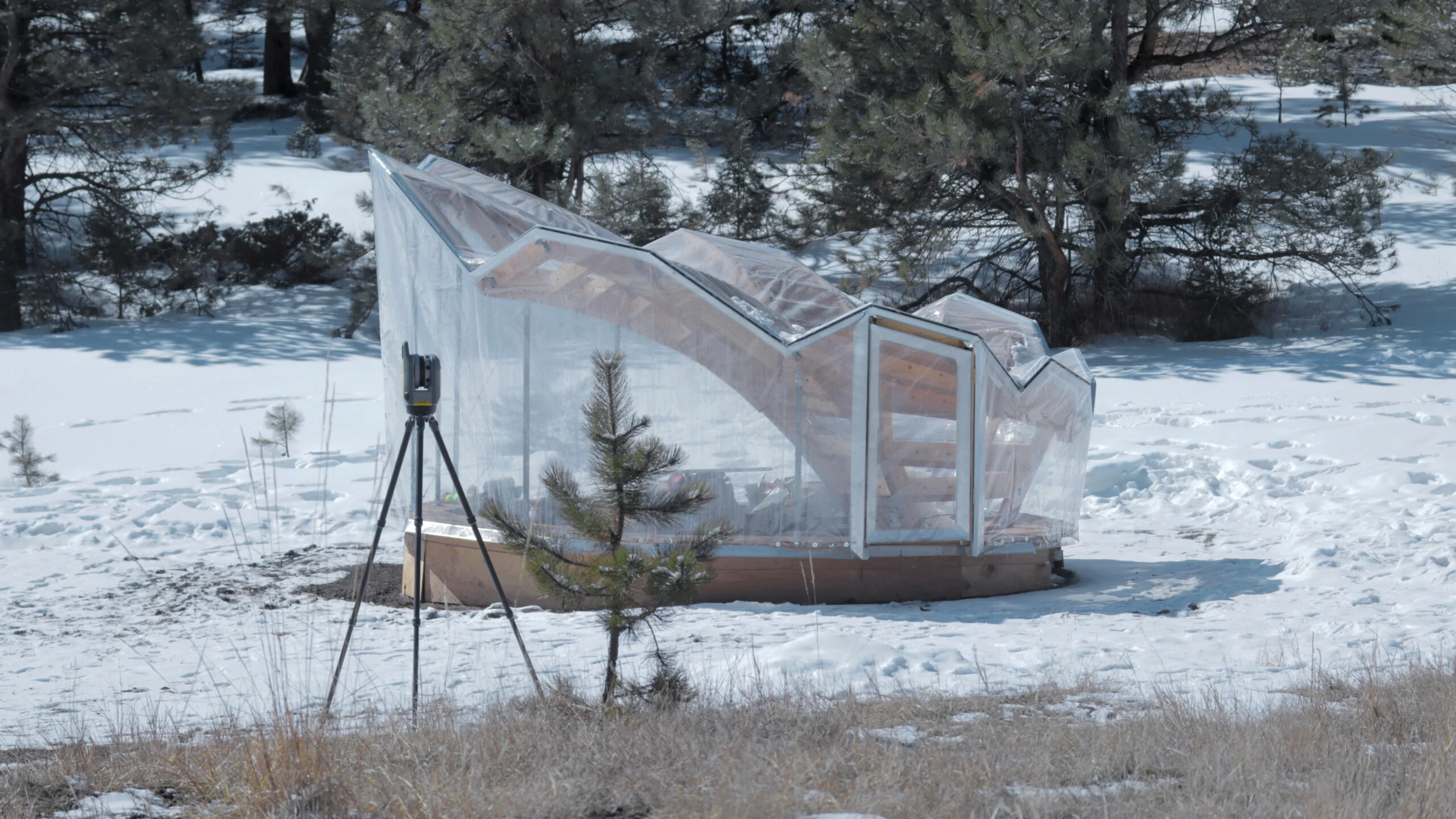

Photogrammetry and laser surveying support assembly by comparing the built structure with its digital model. The completed pavilion includes sensors for subsequent evaluation of its thermal performance.
My contribution was to the conceptual design, working with Masoud Akbarzadeh, Hua Chai, and Yiliang Shao.
Floralis project film
Timber fabrication, site assembly, and the completed shelter.

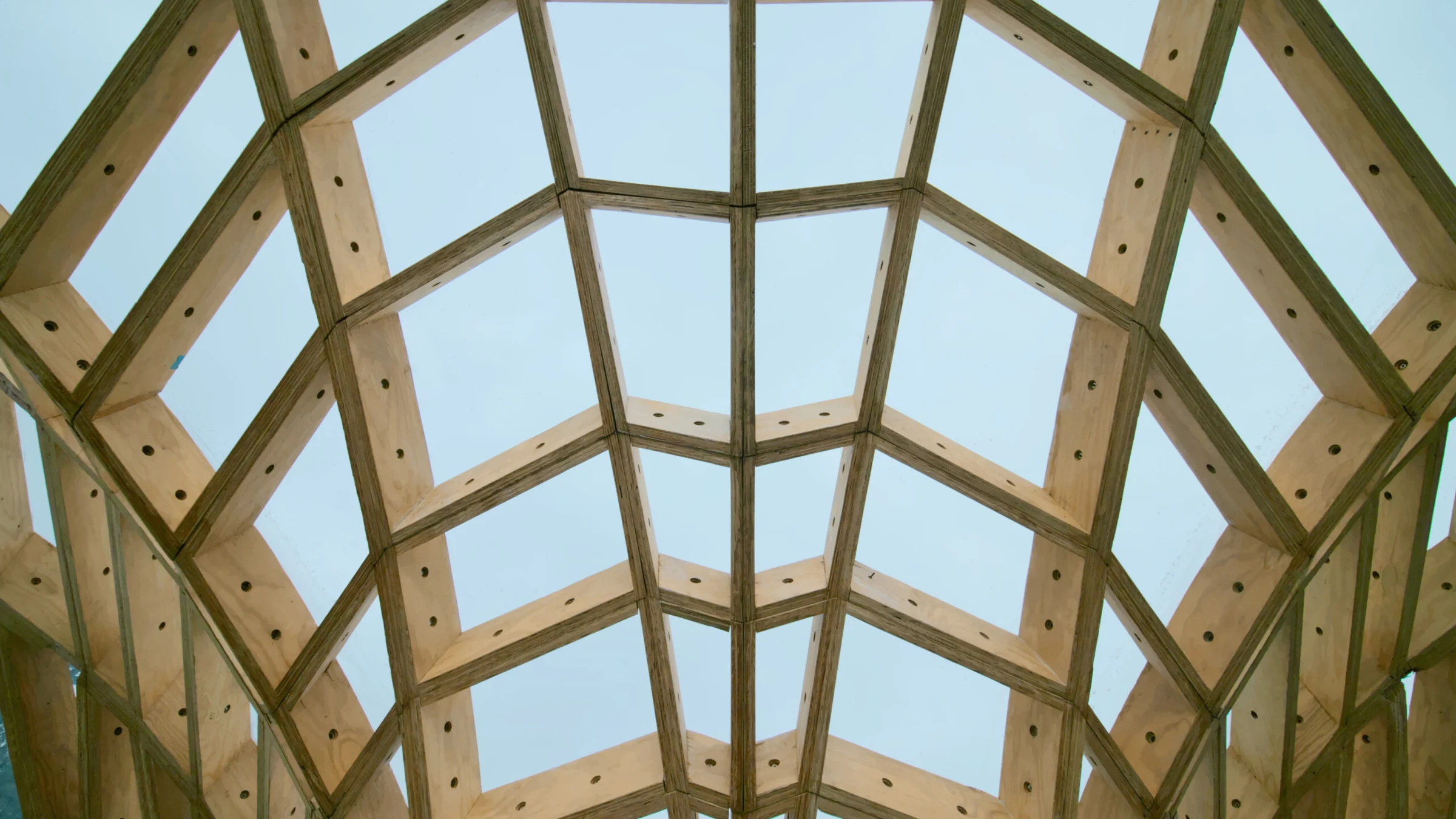

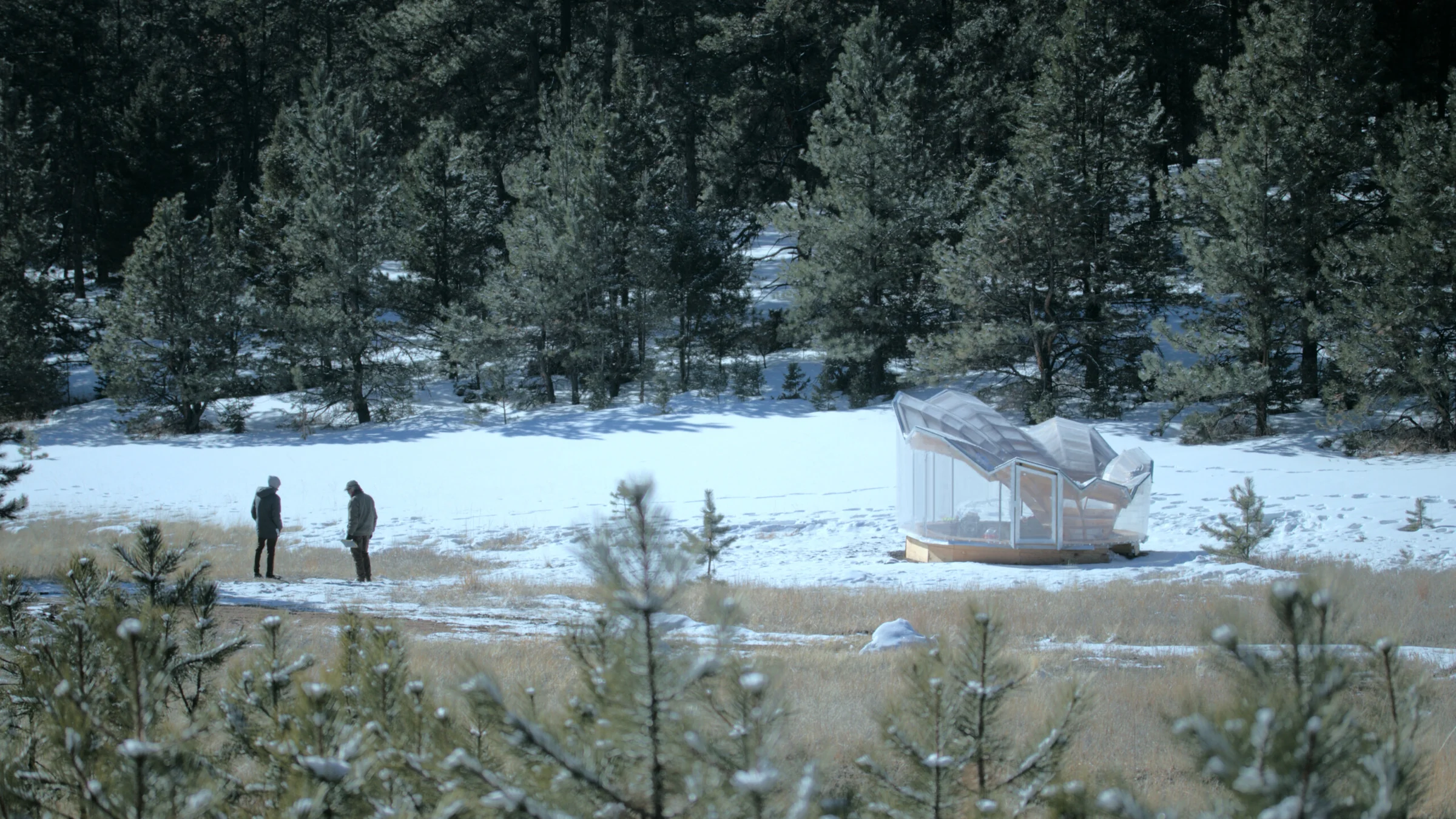

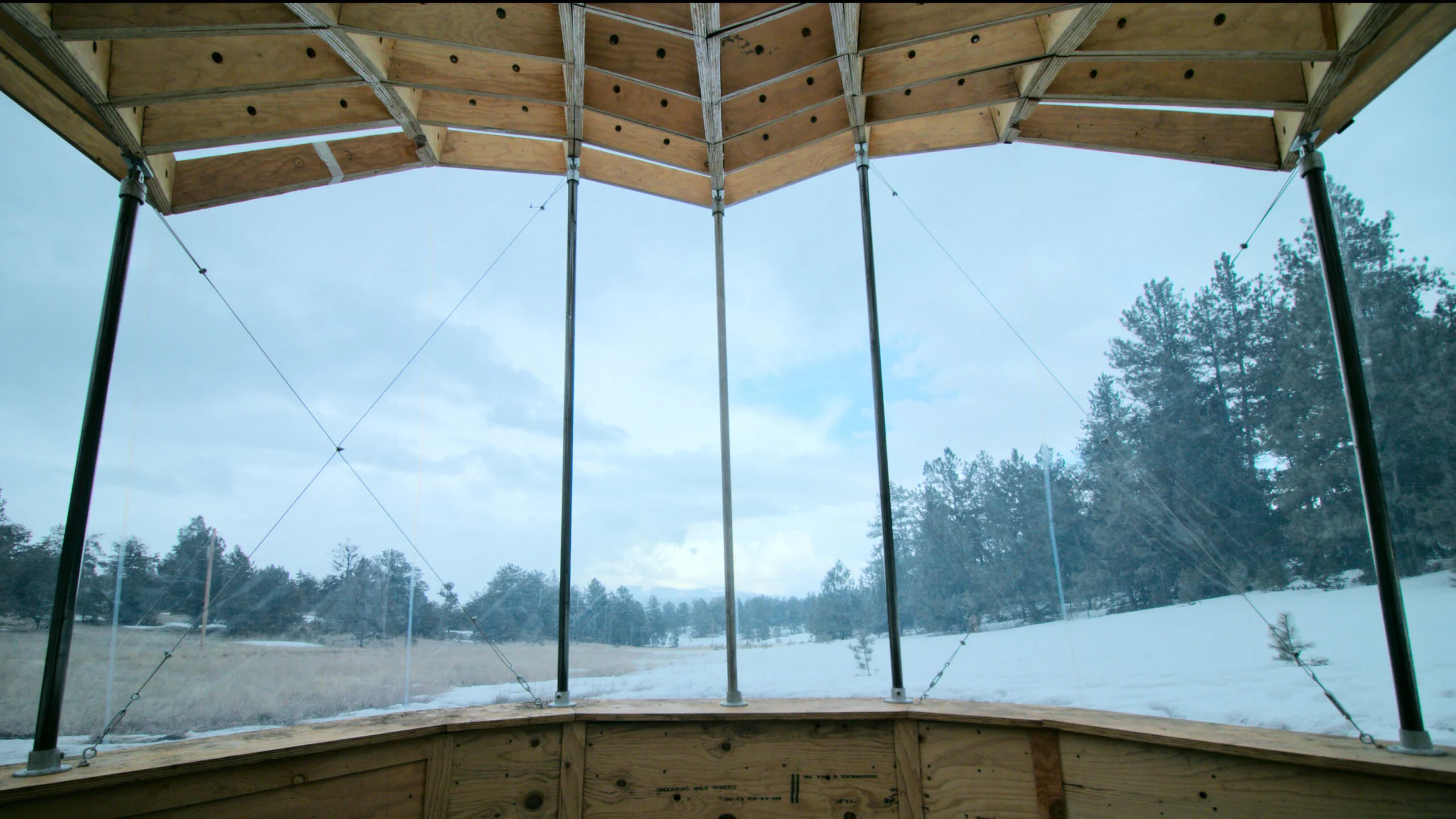

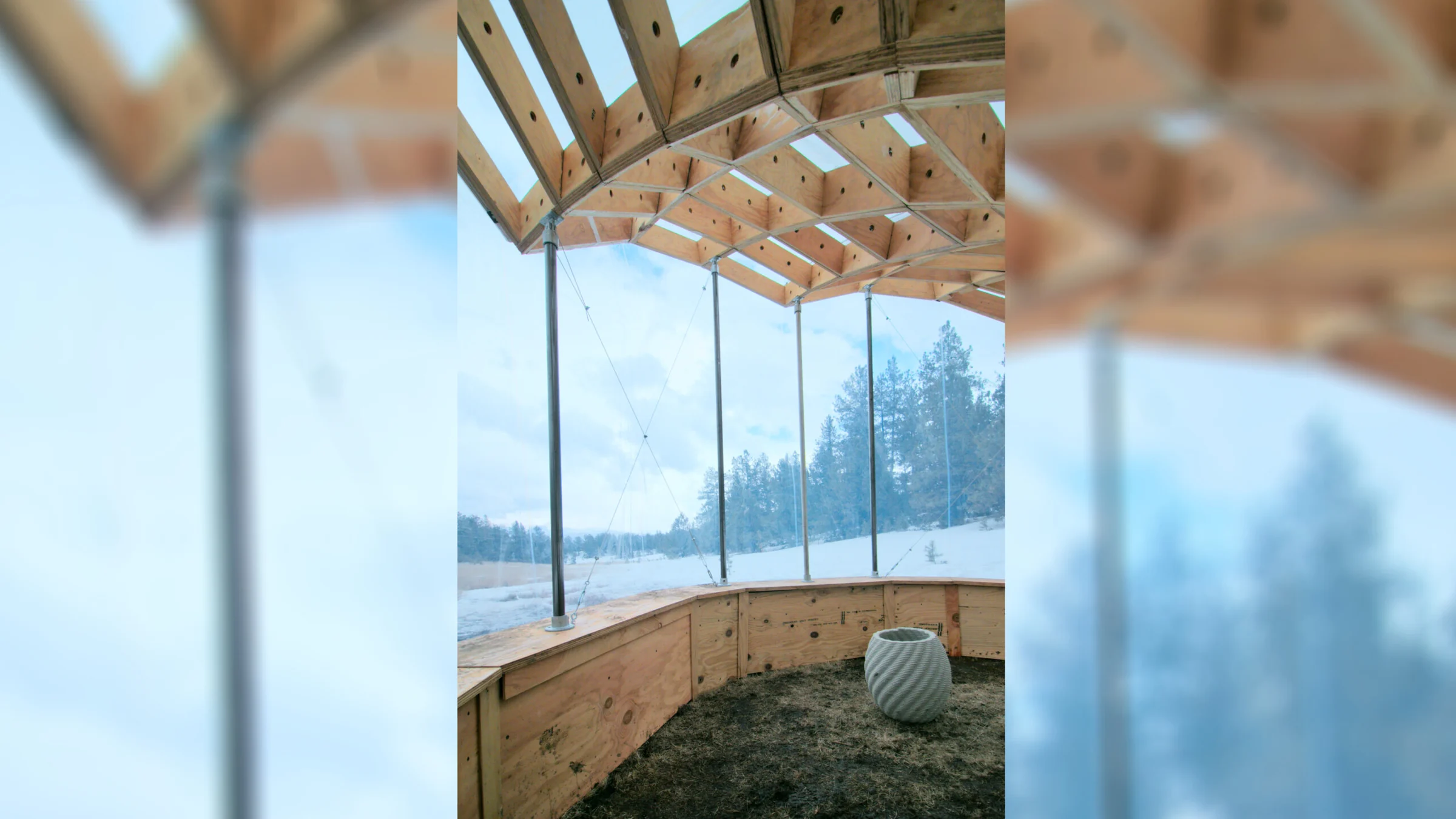

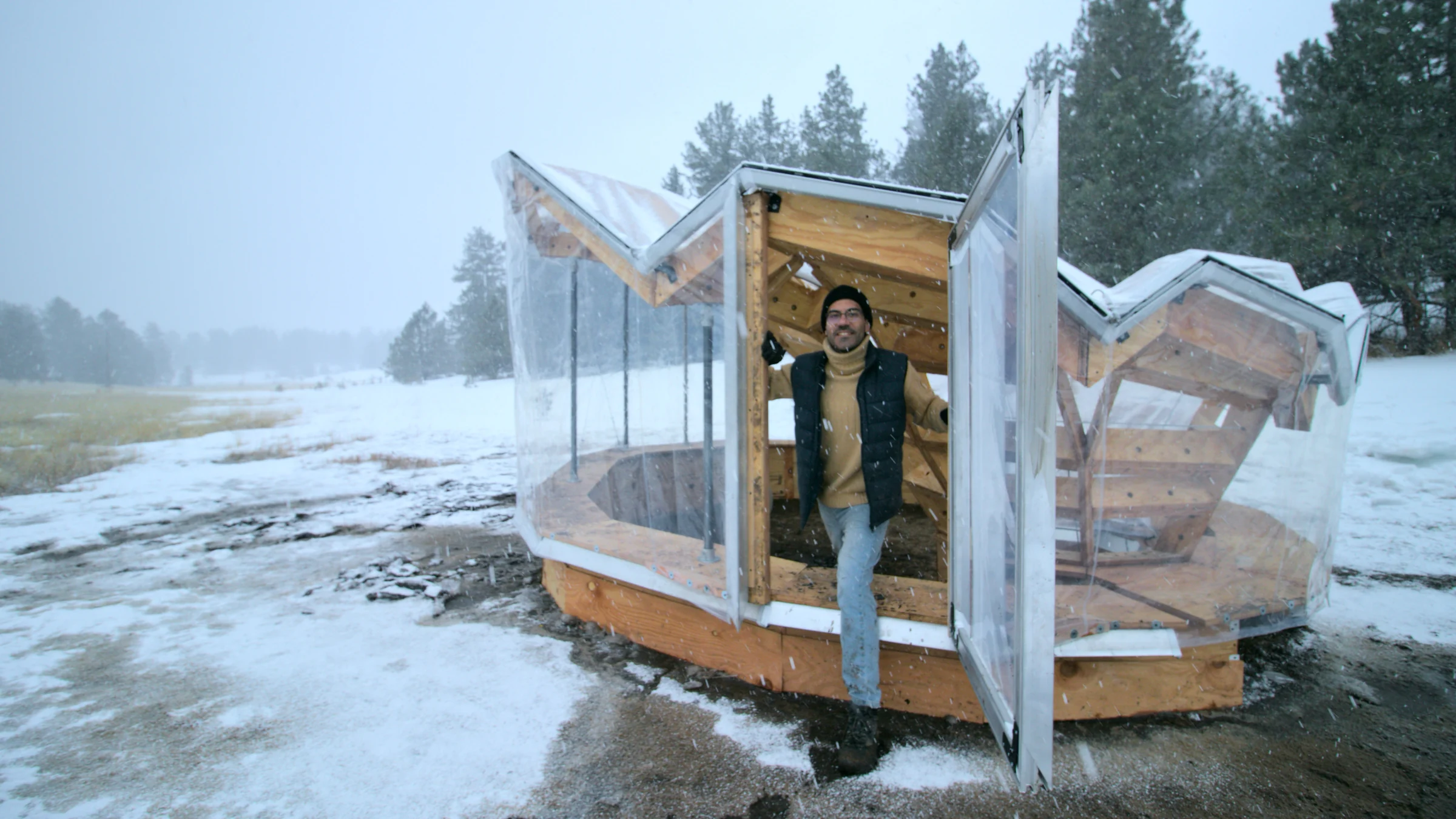

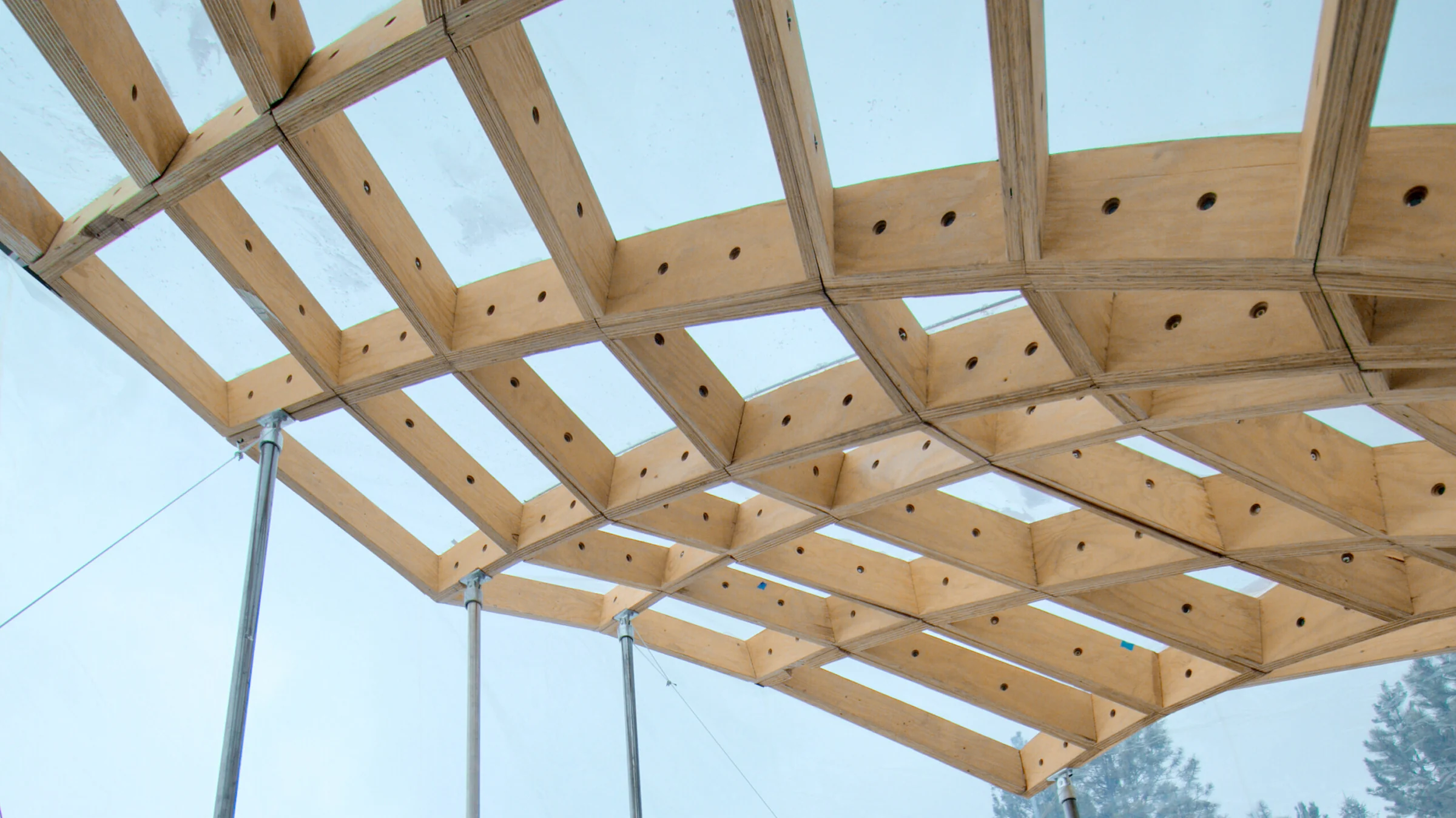

Shelter and interior

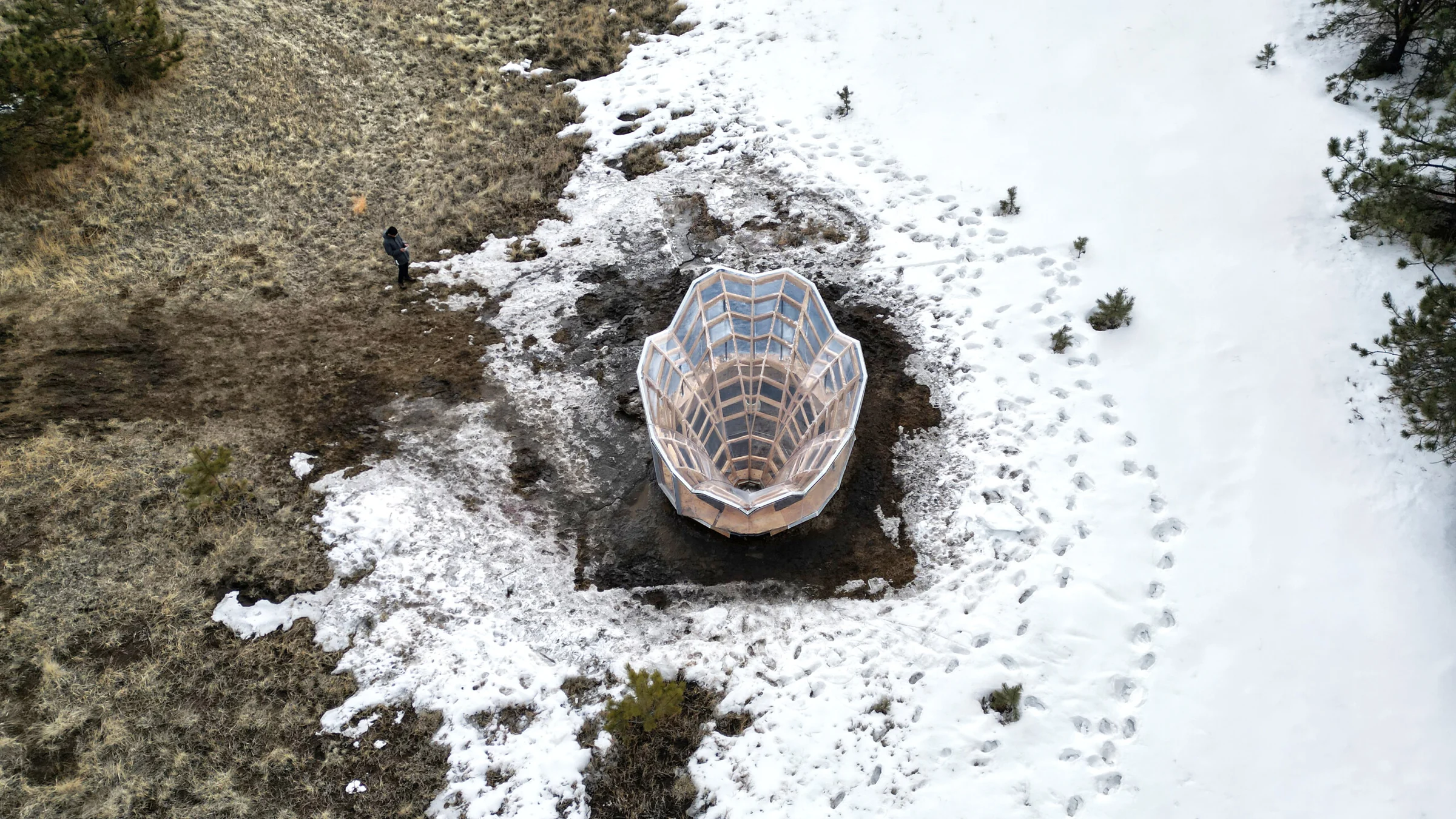

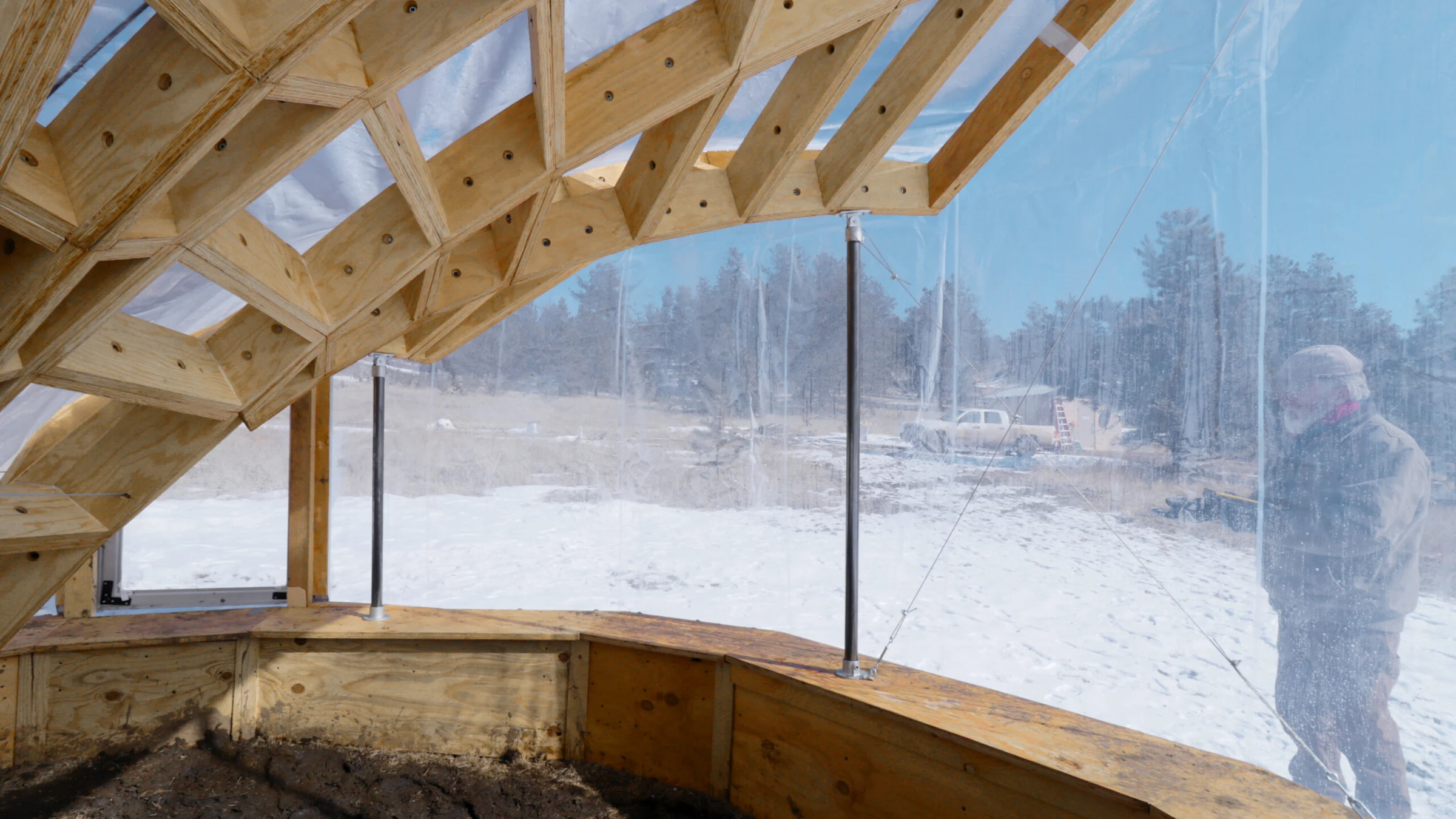

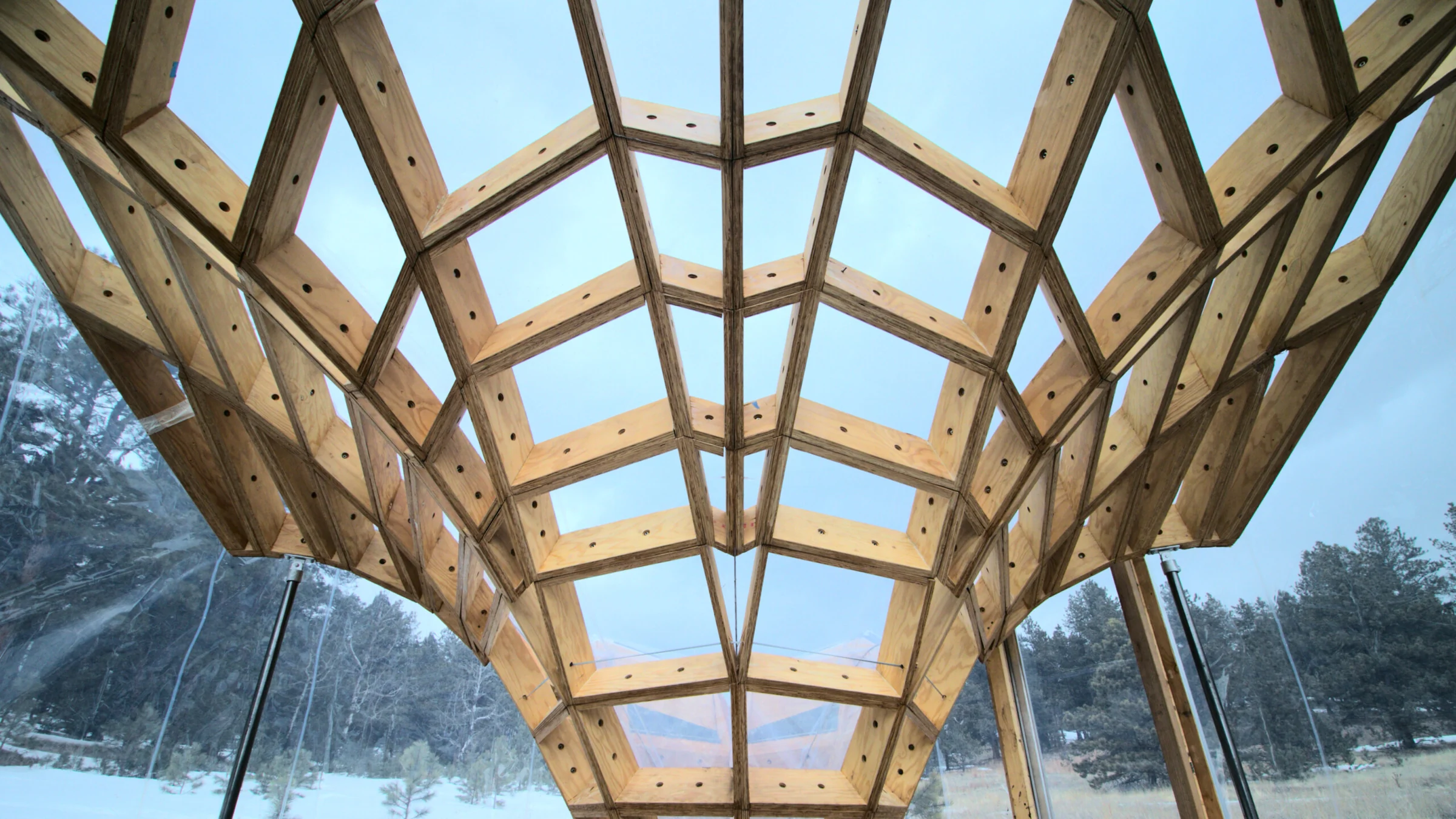

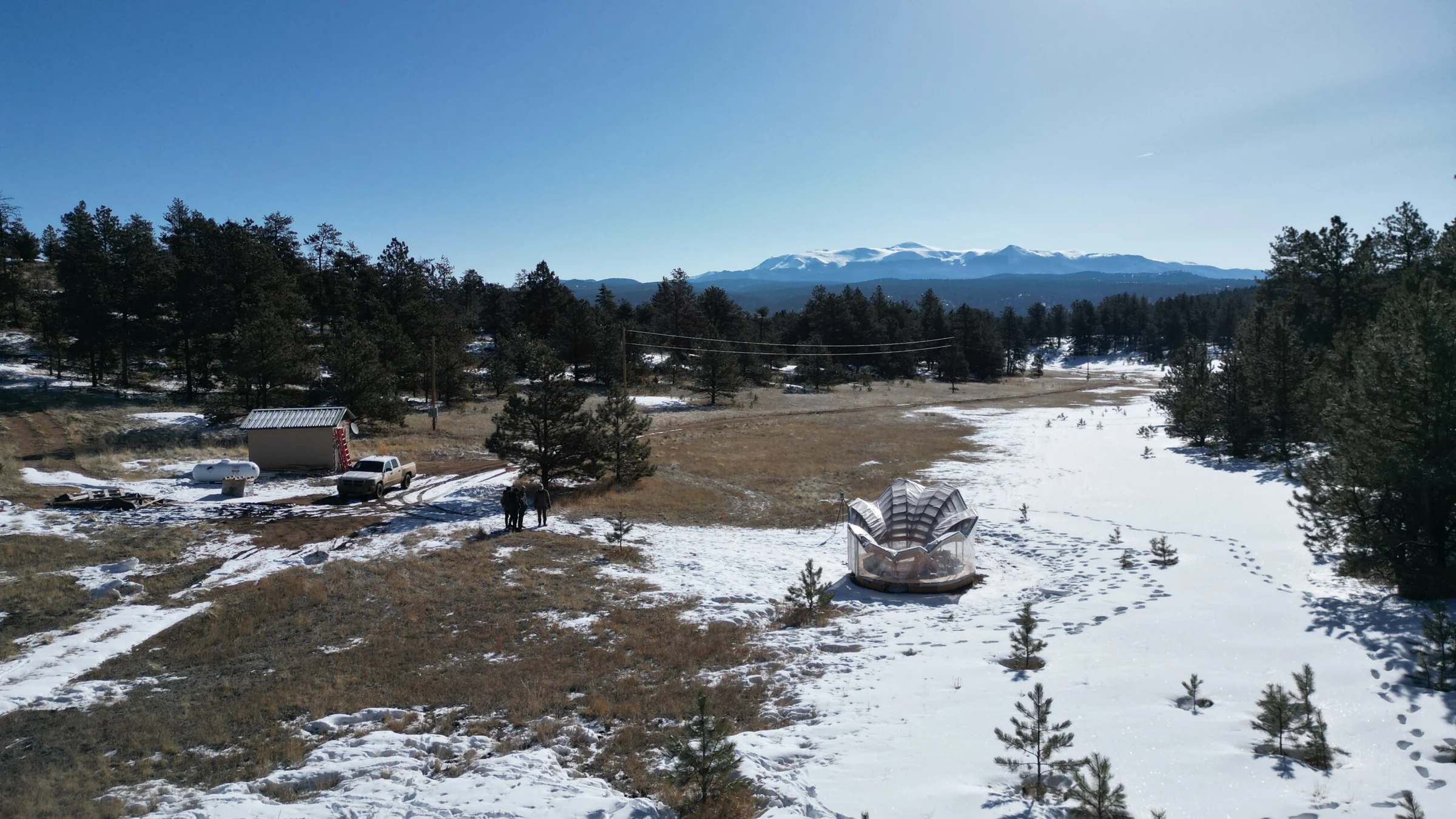

The timber lattice, ETFE enclosure, and relationship to the fossil site.

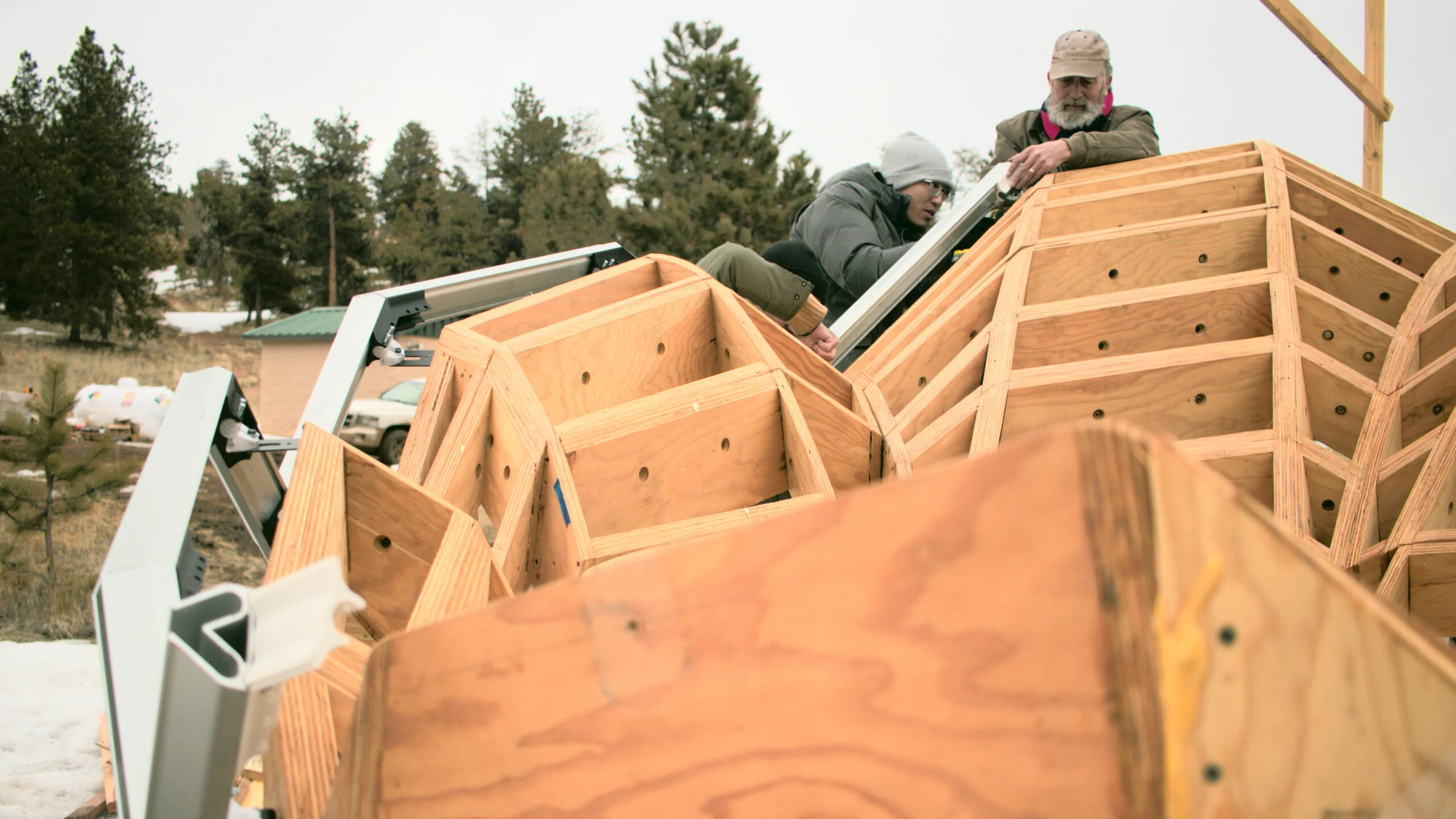

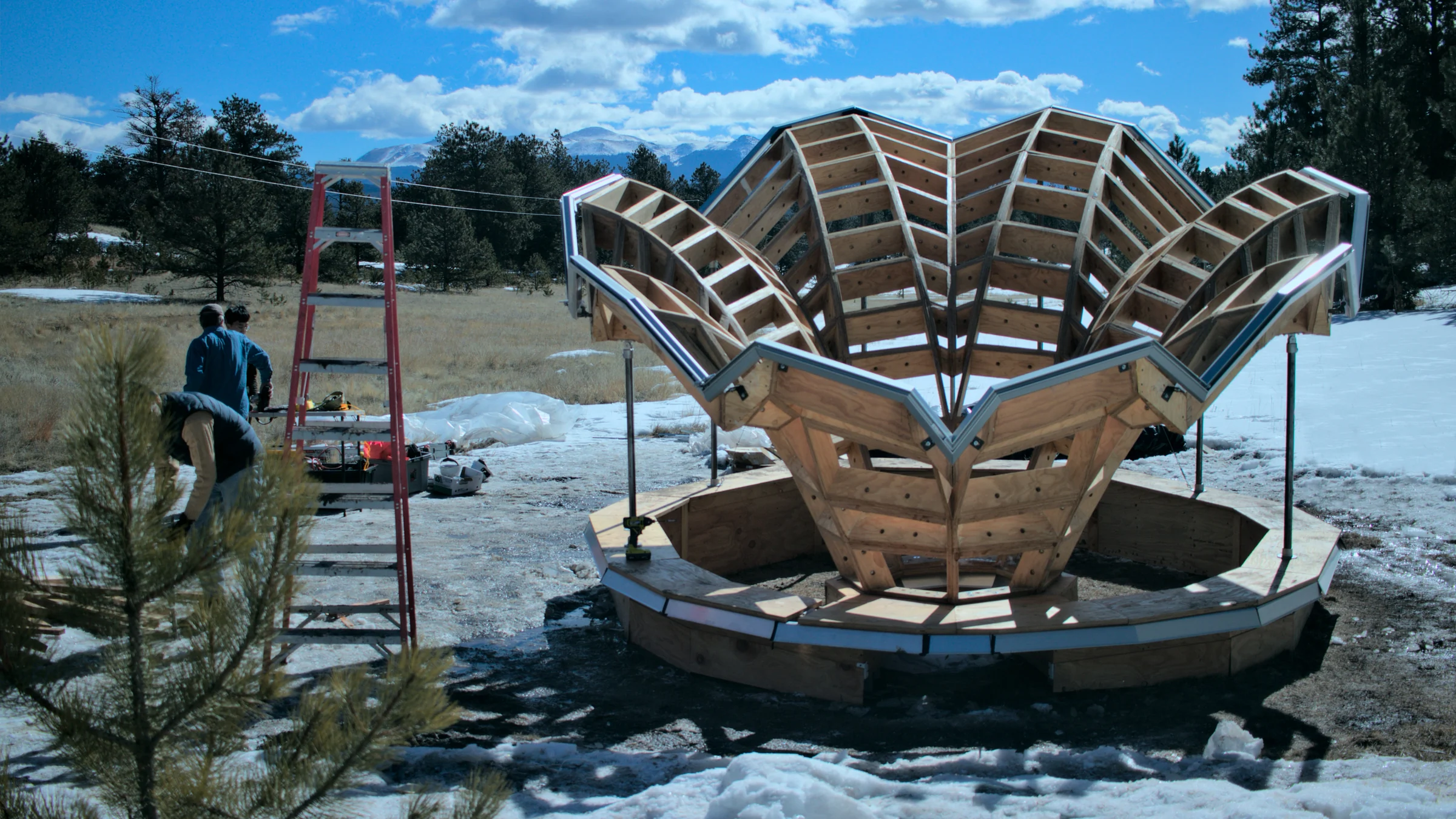

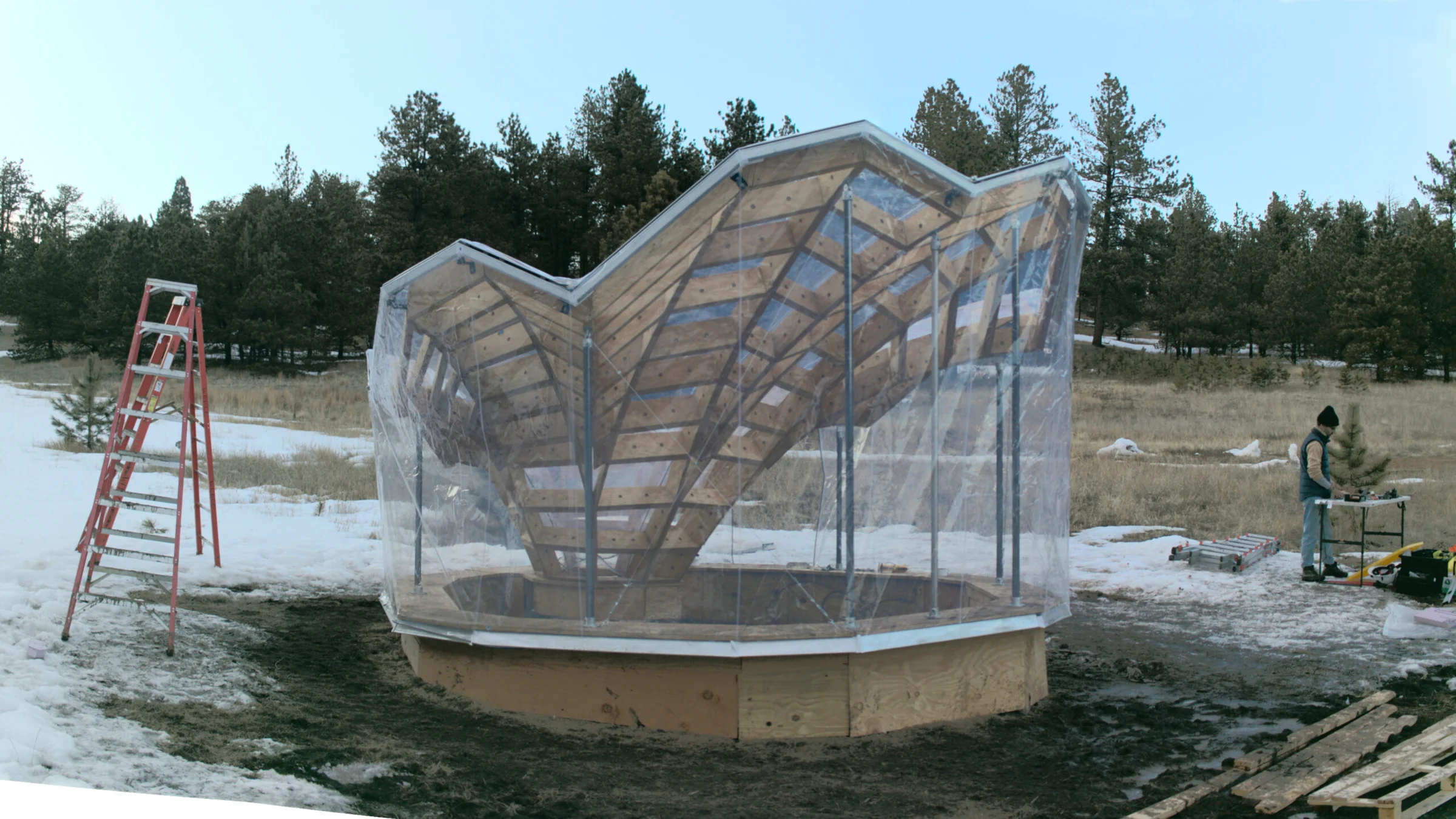

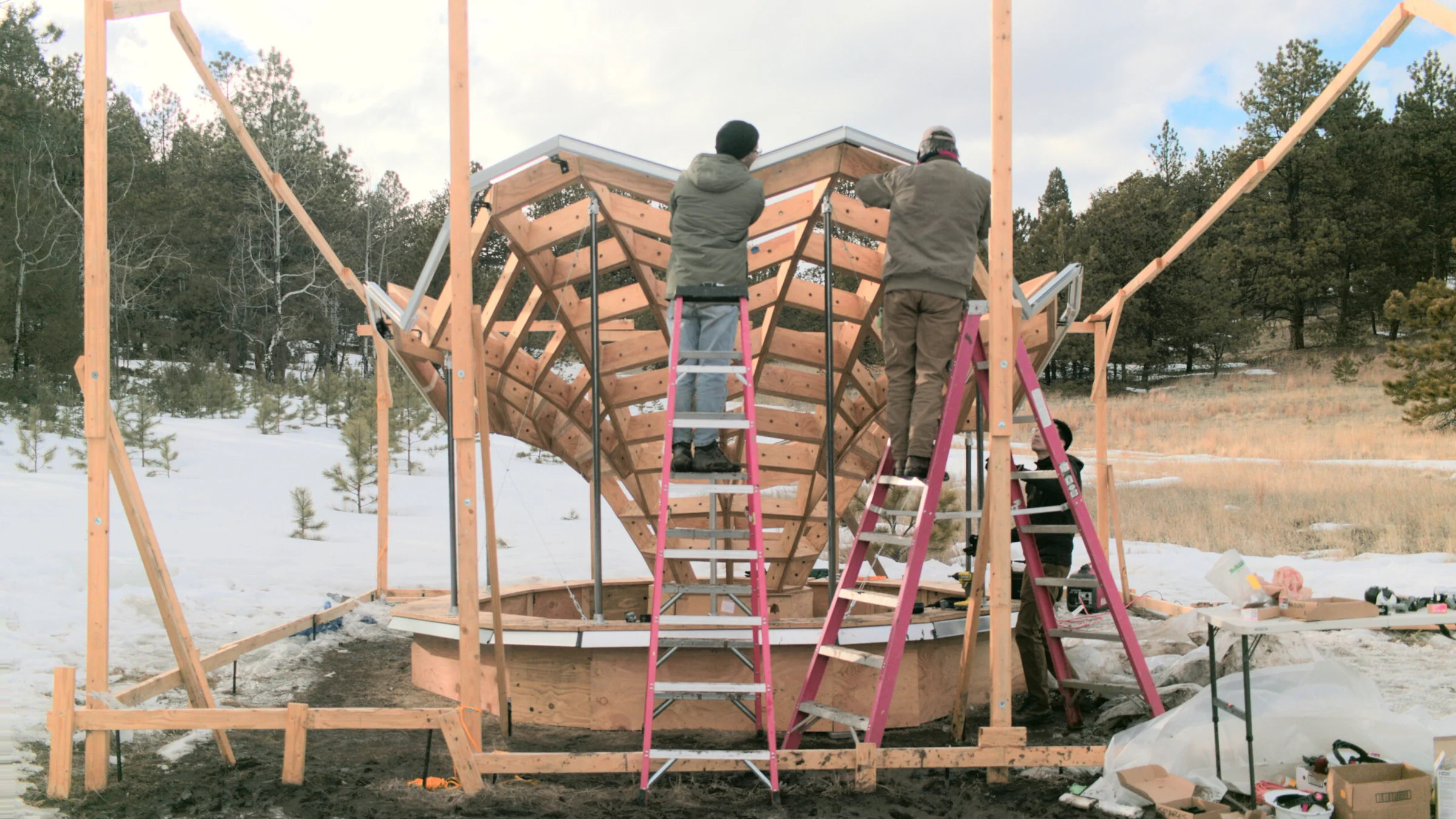

Fabrication and site assembly

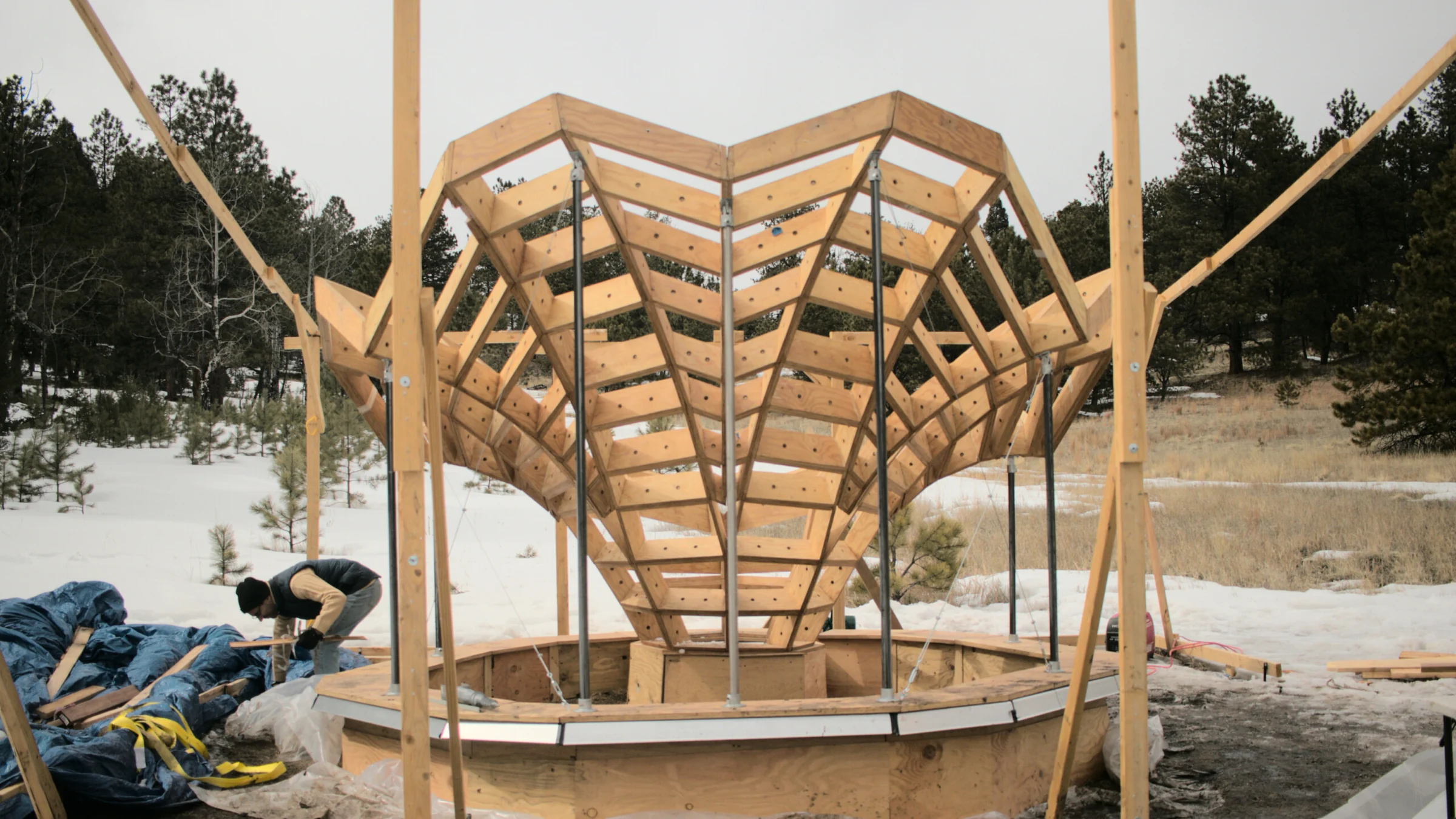

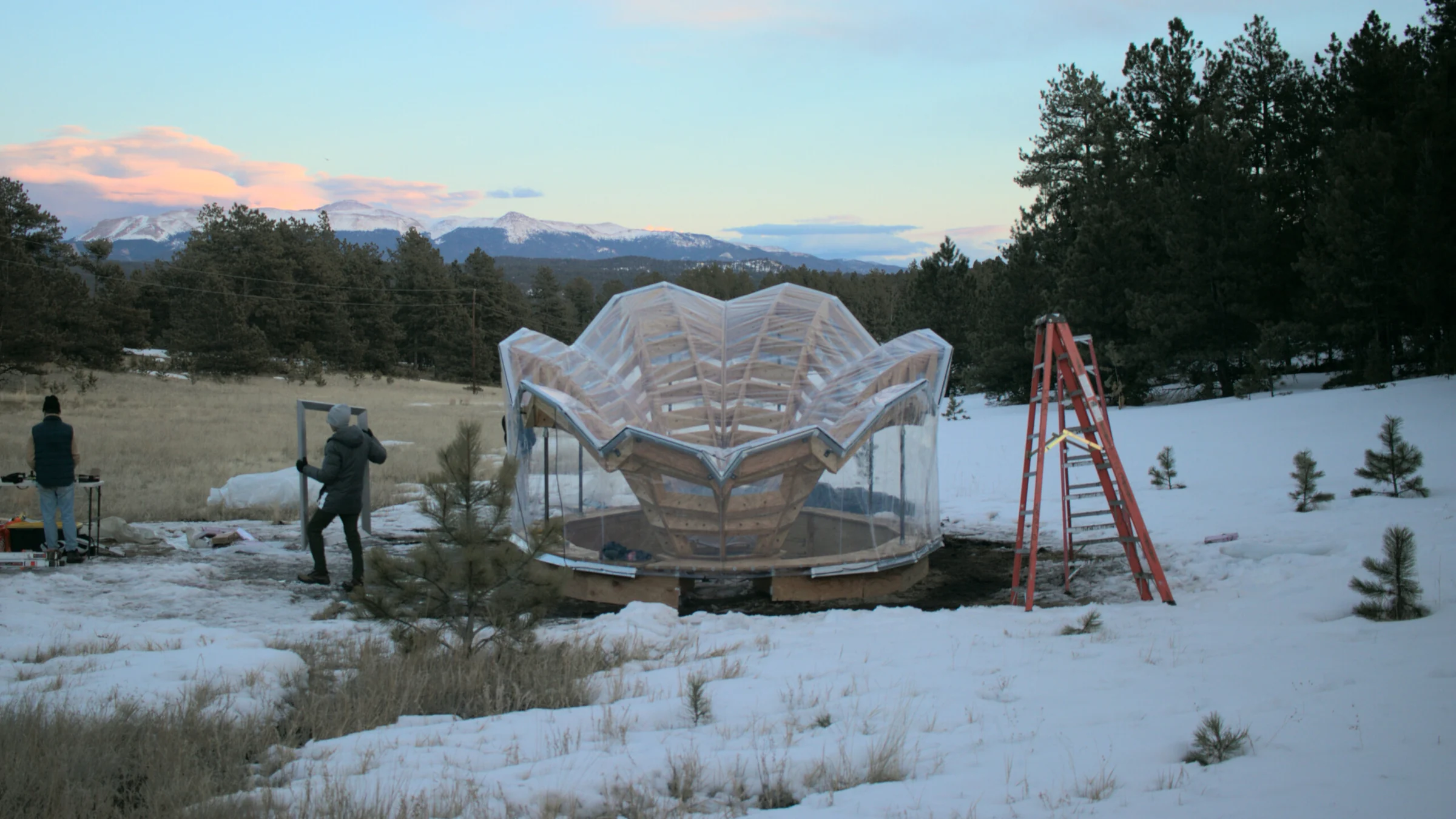

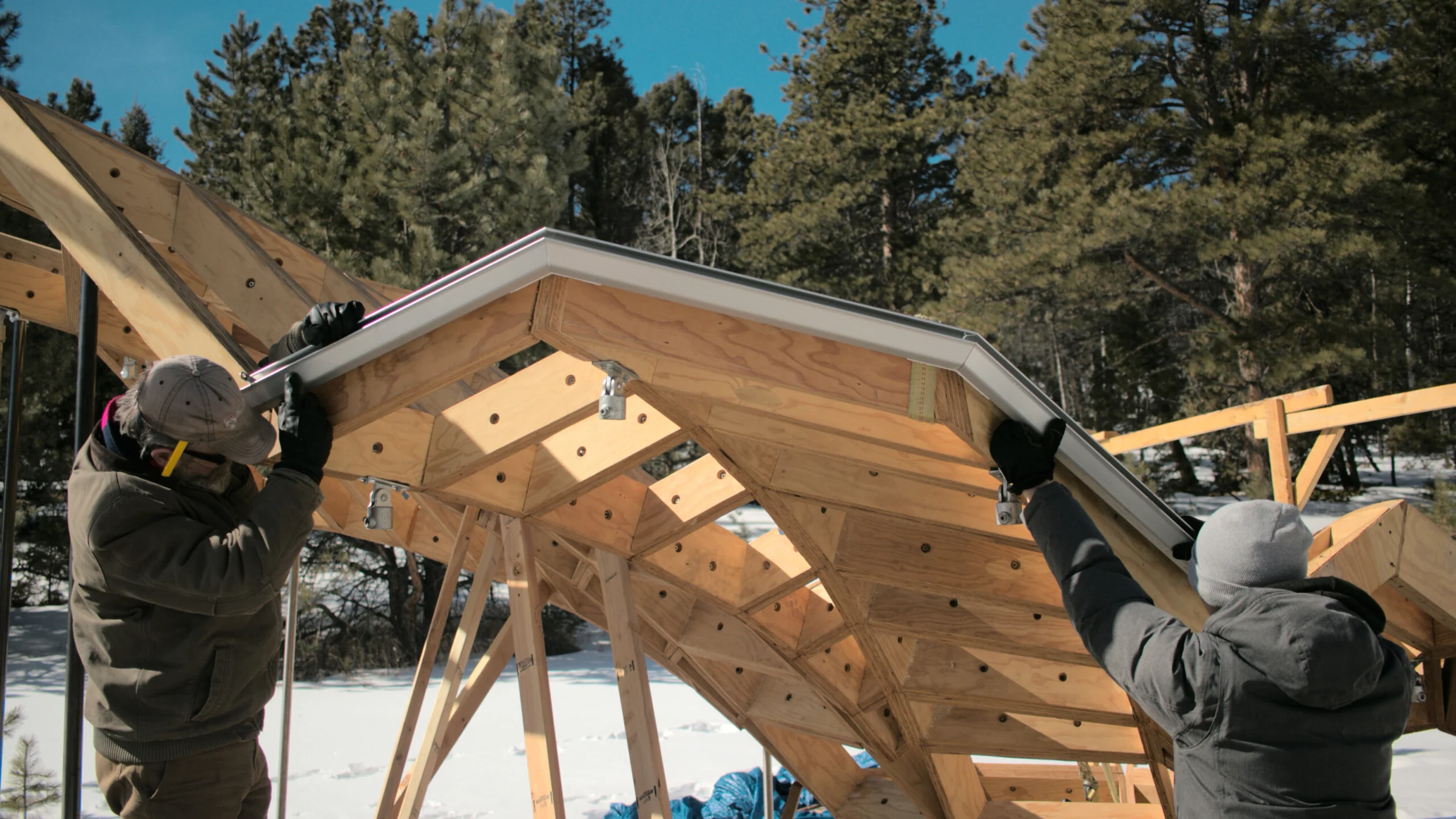

Timber assembly, ETFE support channels, enclosure installation, and surveying.

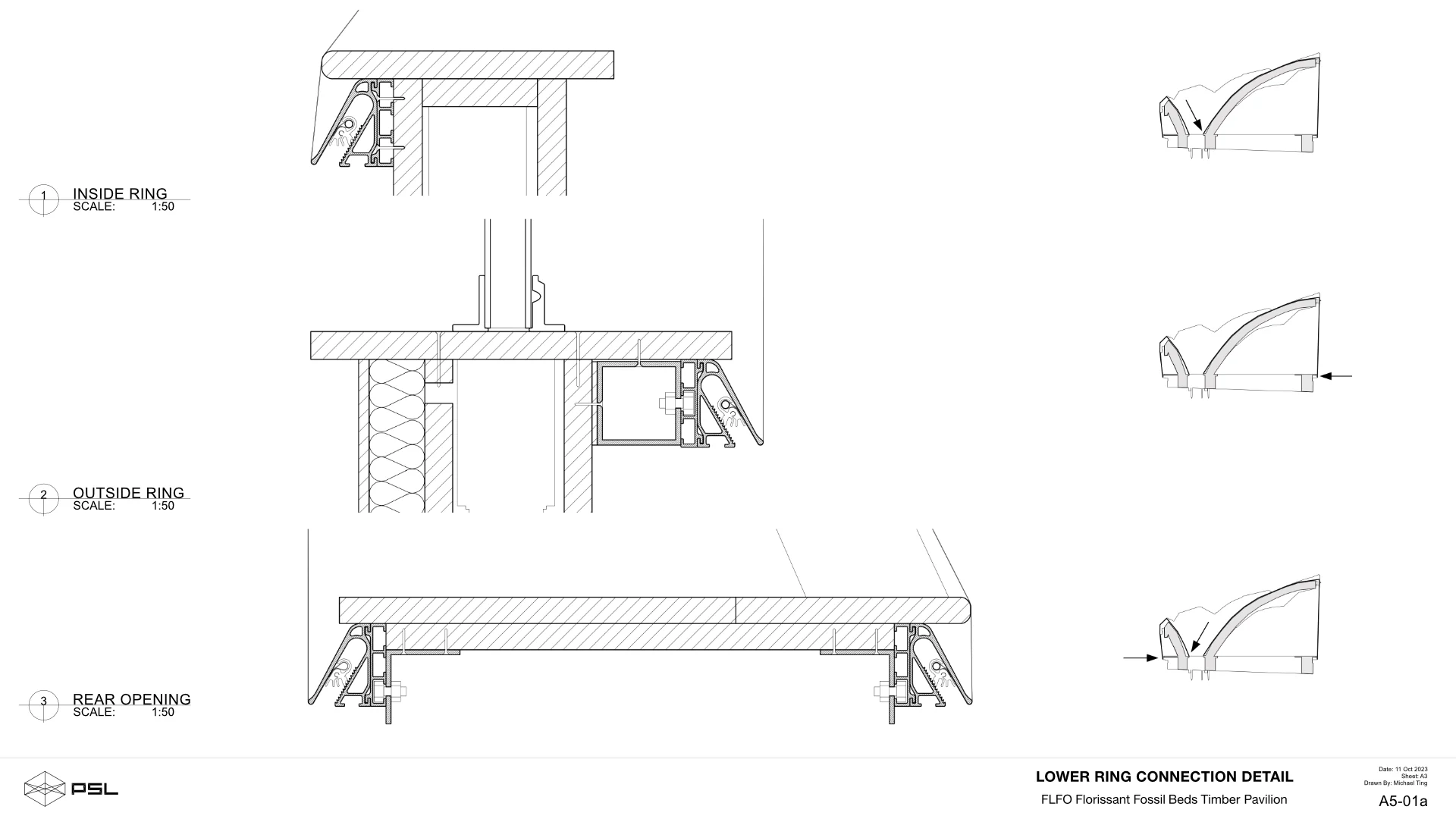

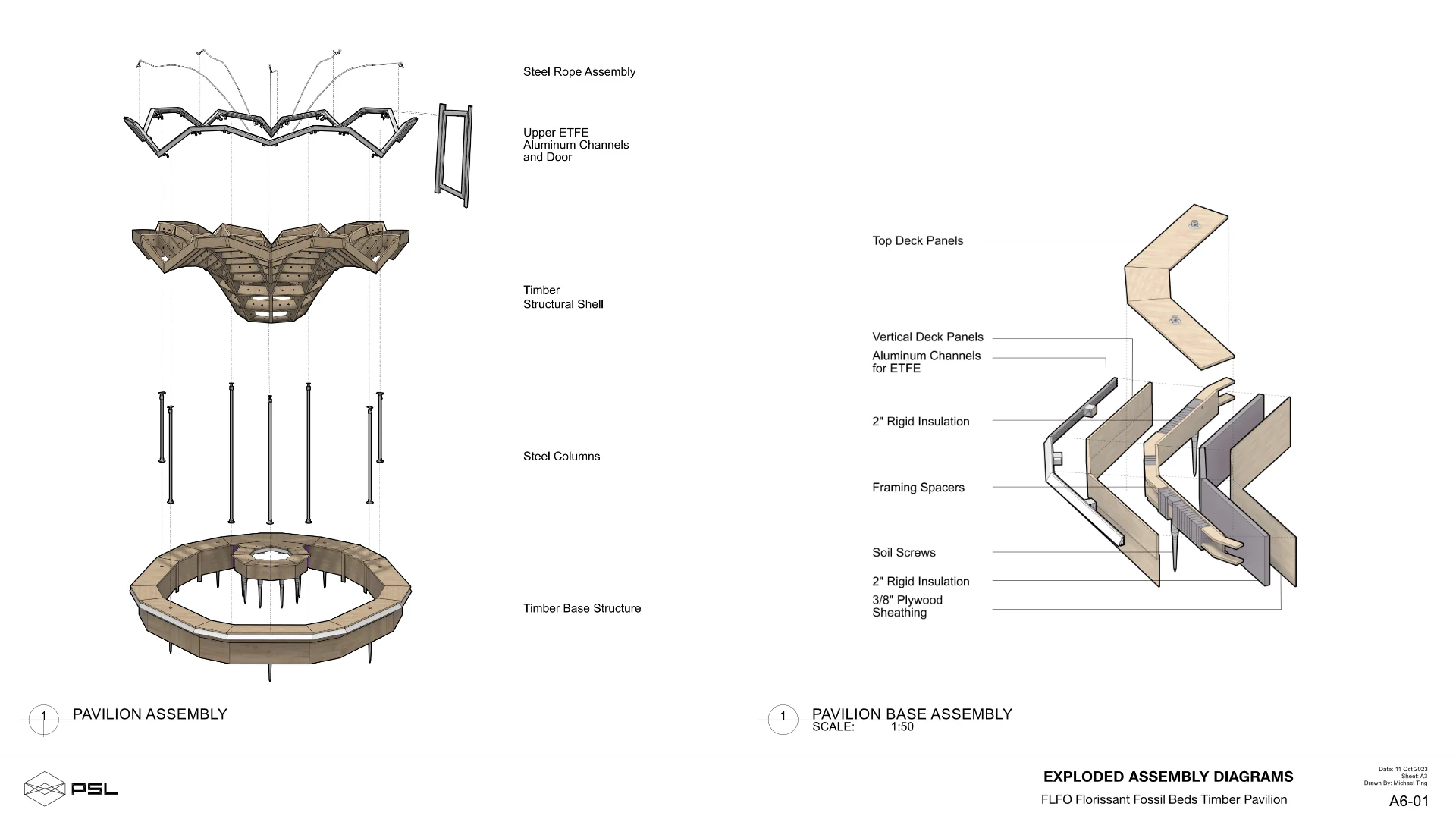

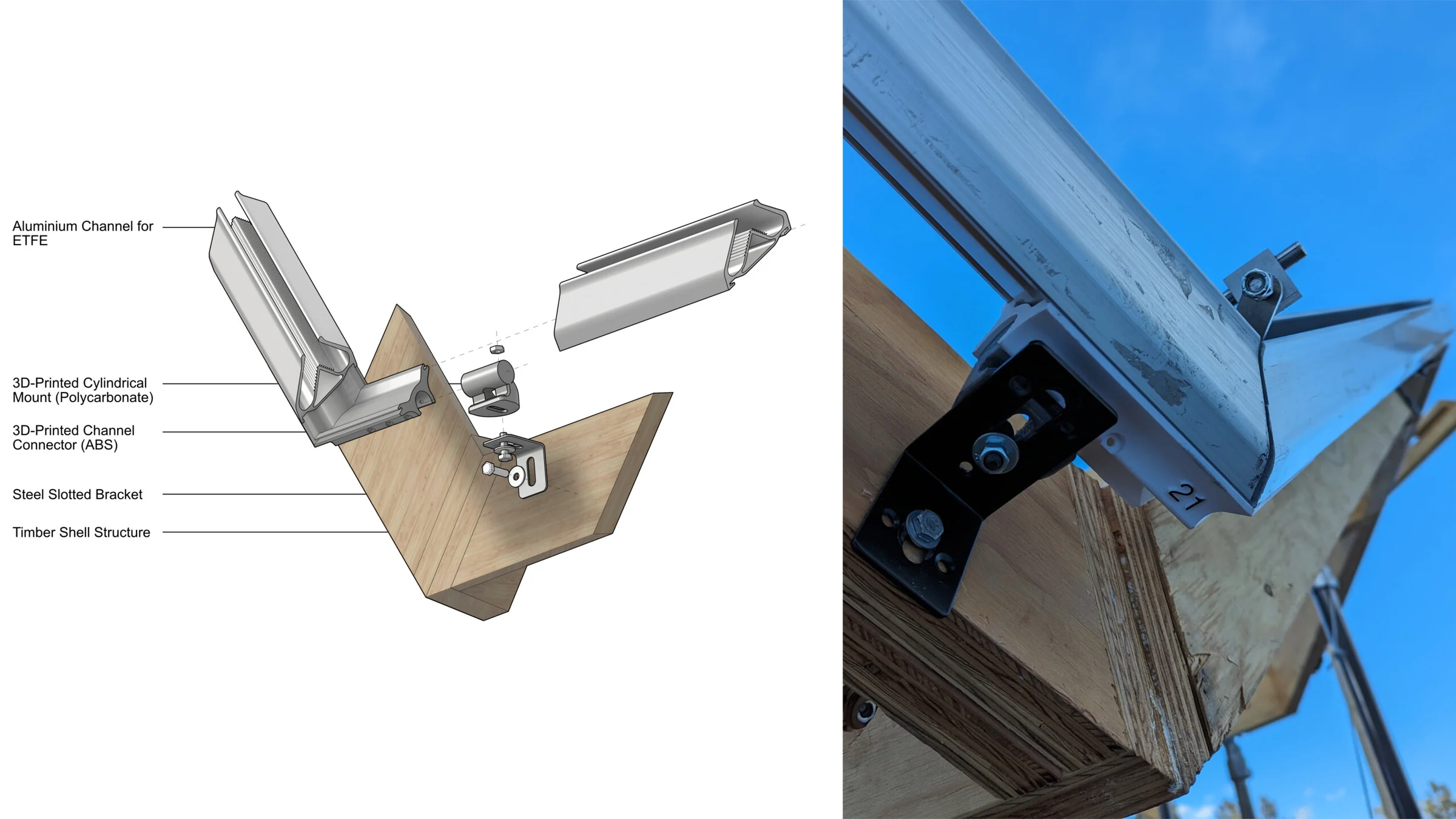

Design development and connections

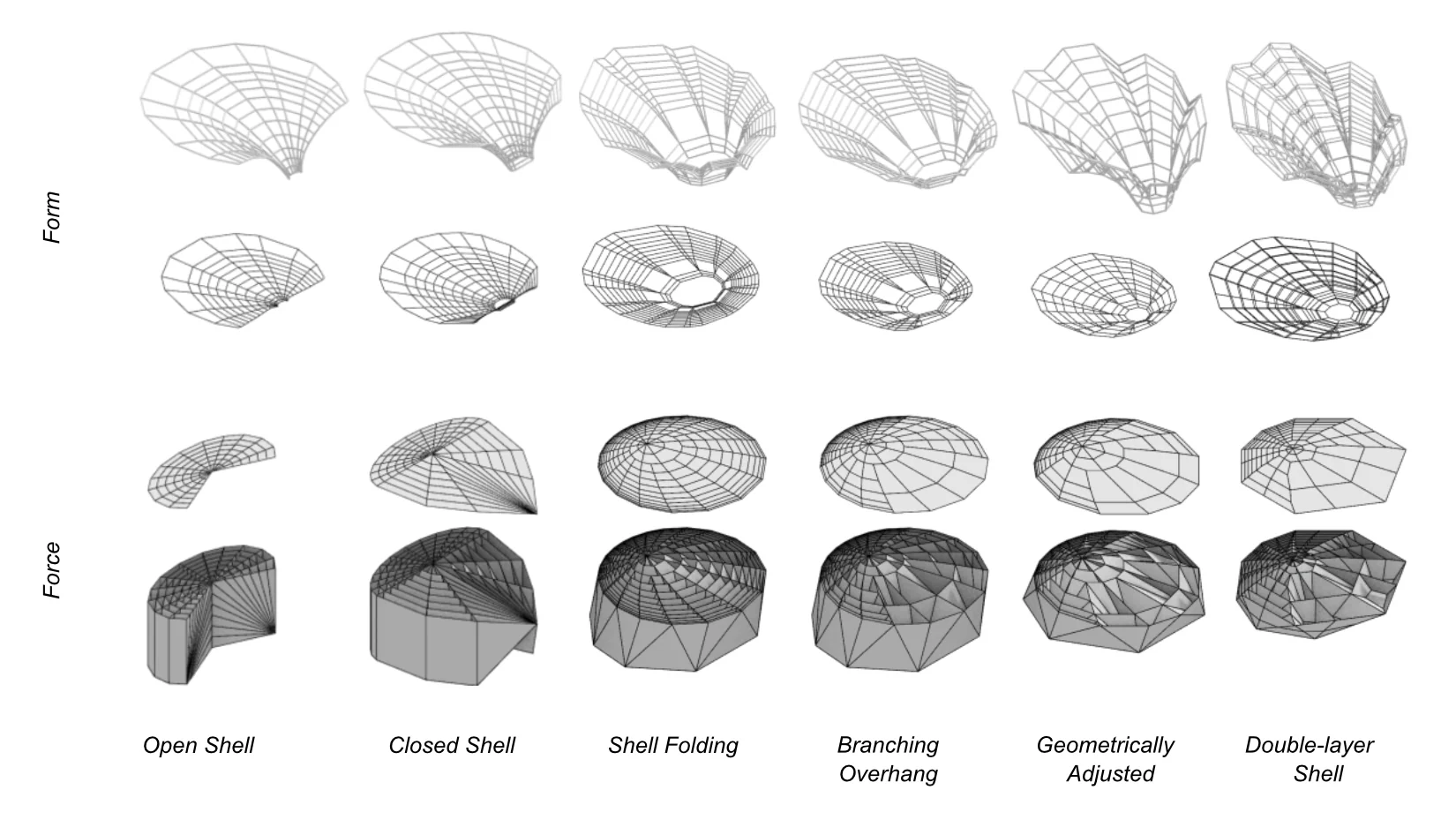

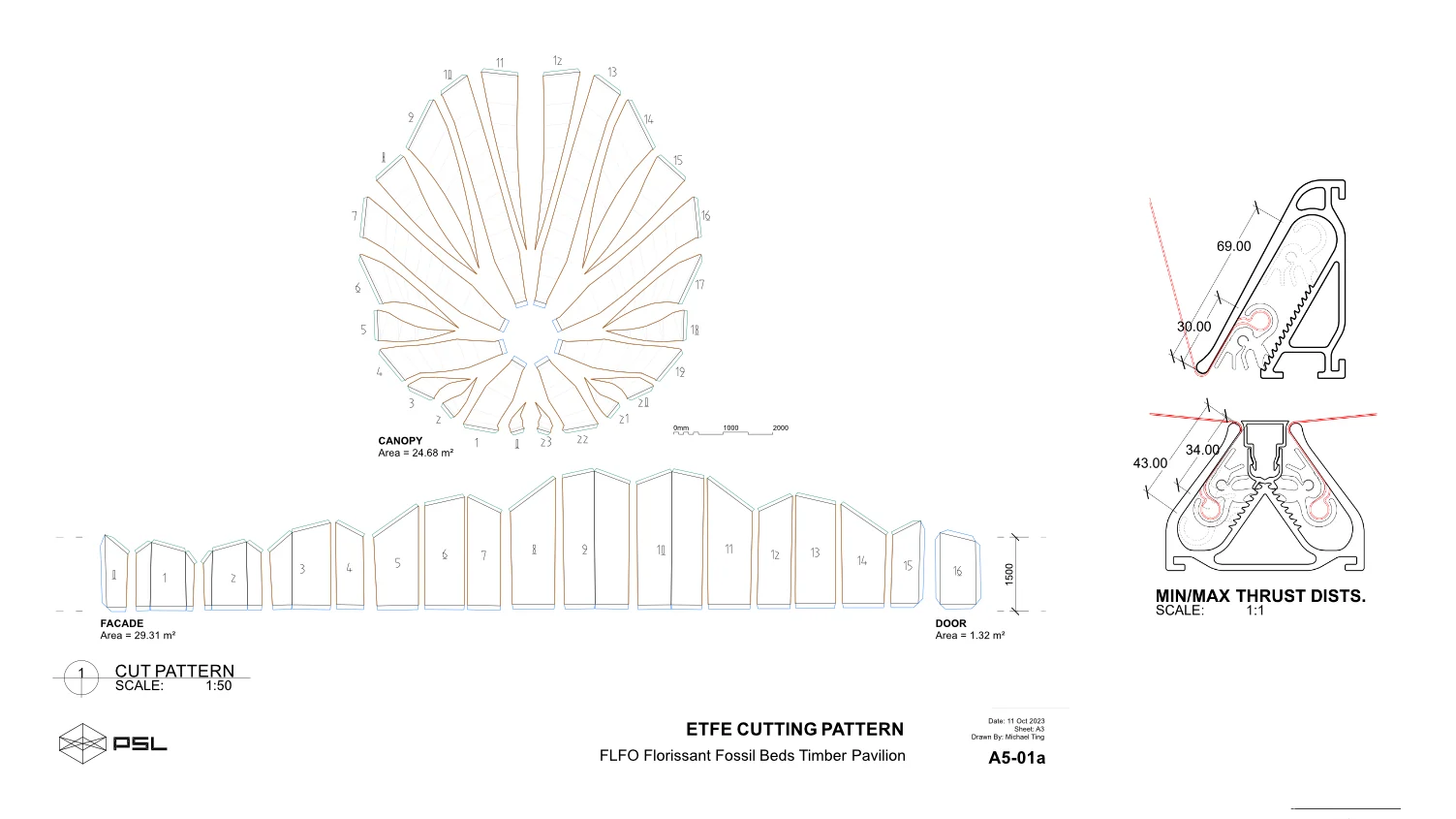

Form-finding iterations, structural layers, ETFE cut patterns, and connection details.
Physical model

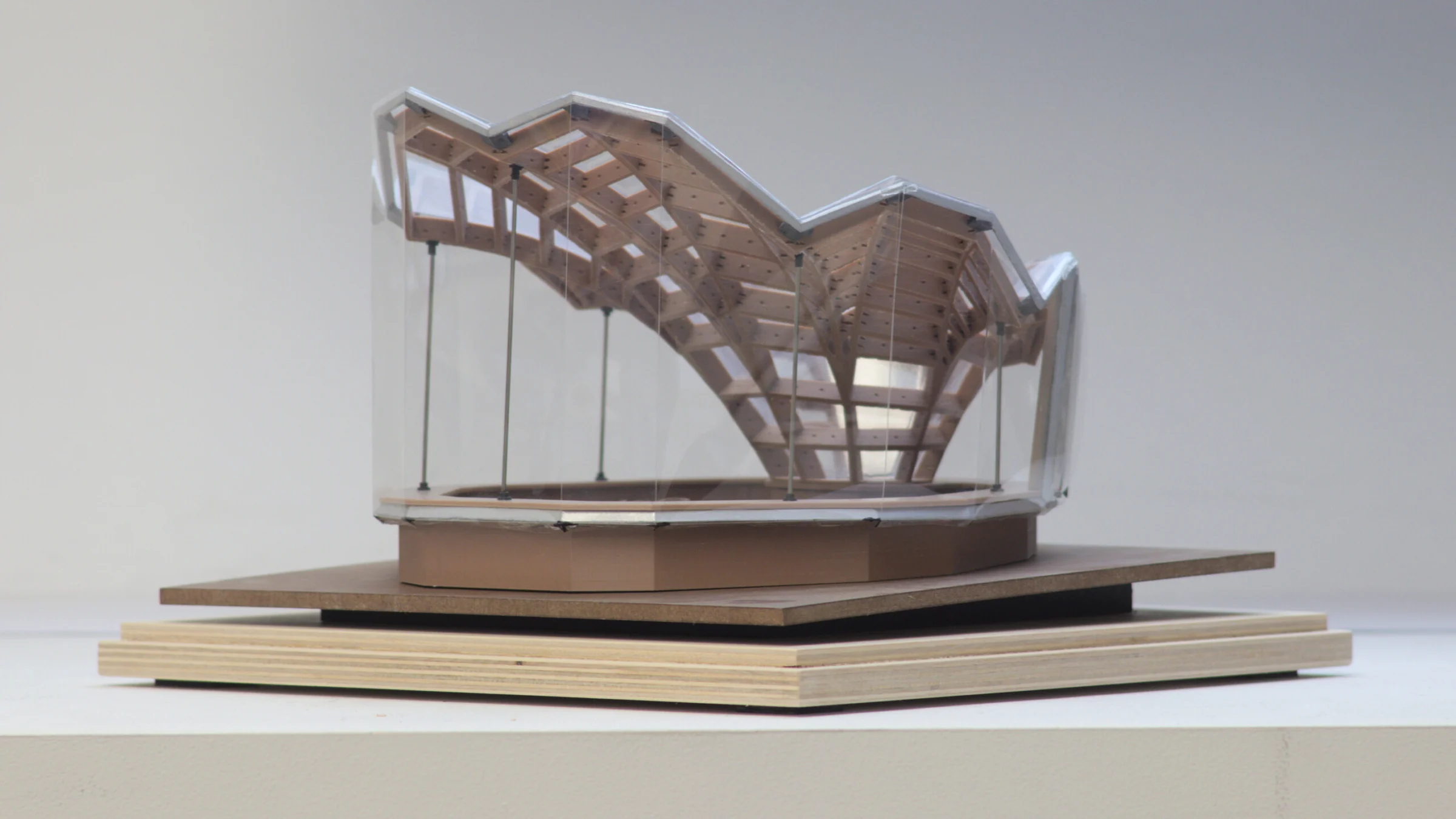

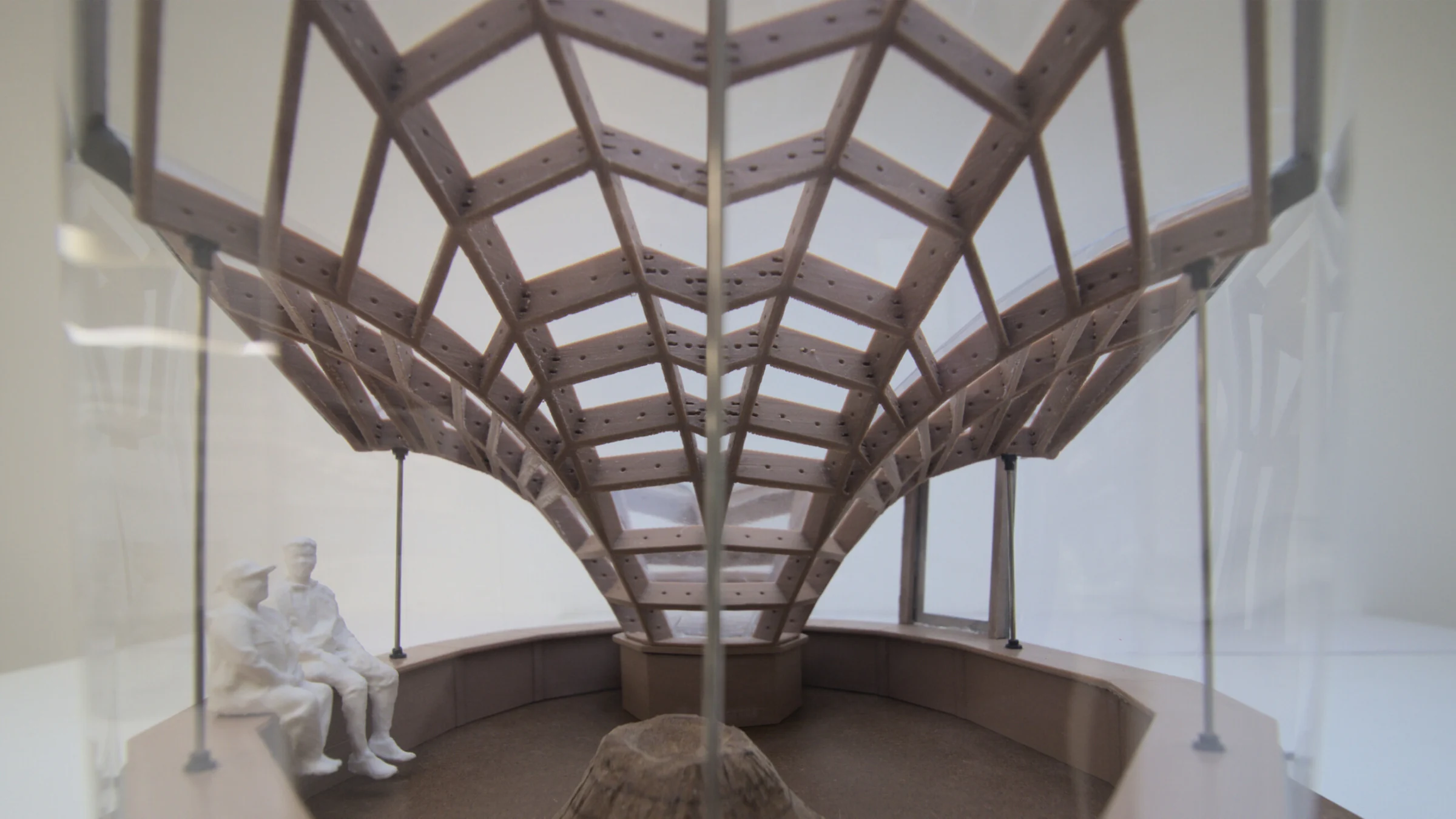

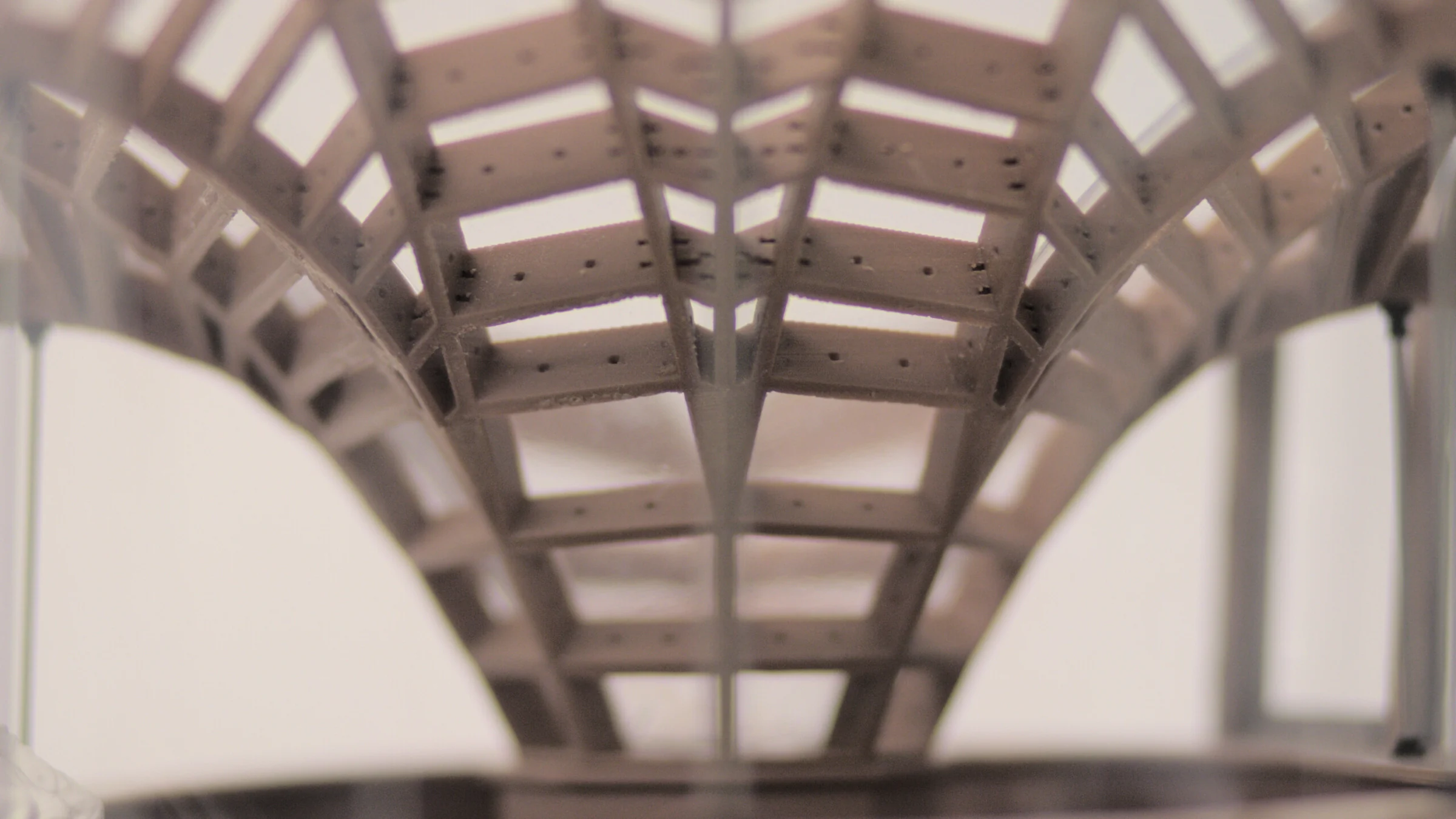

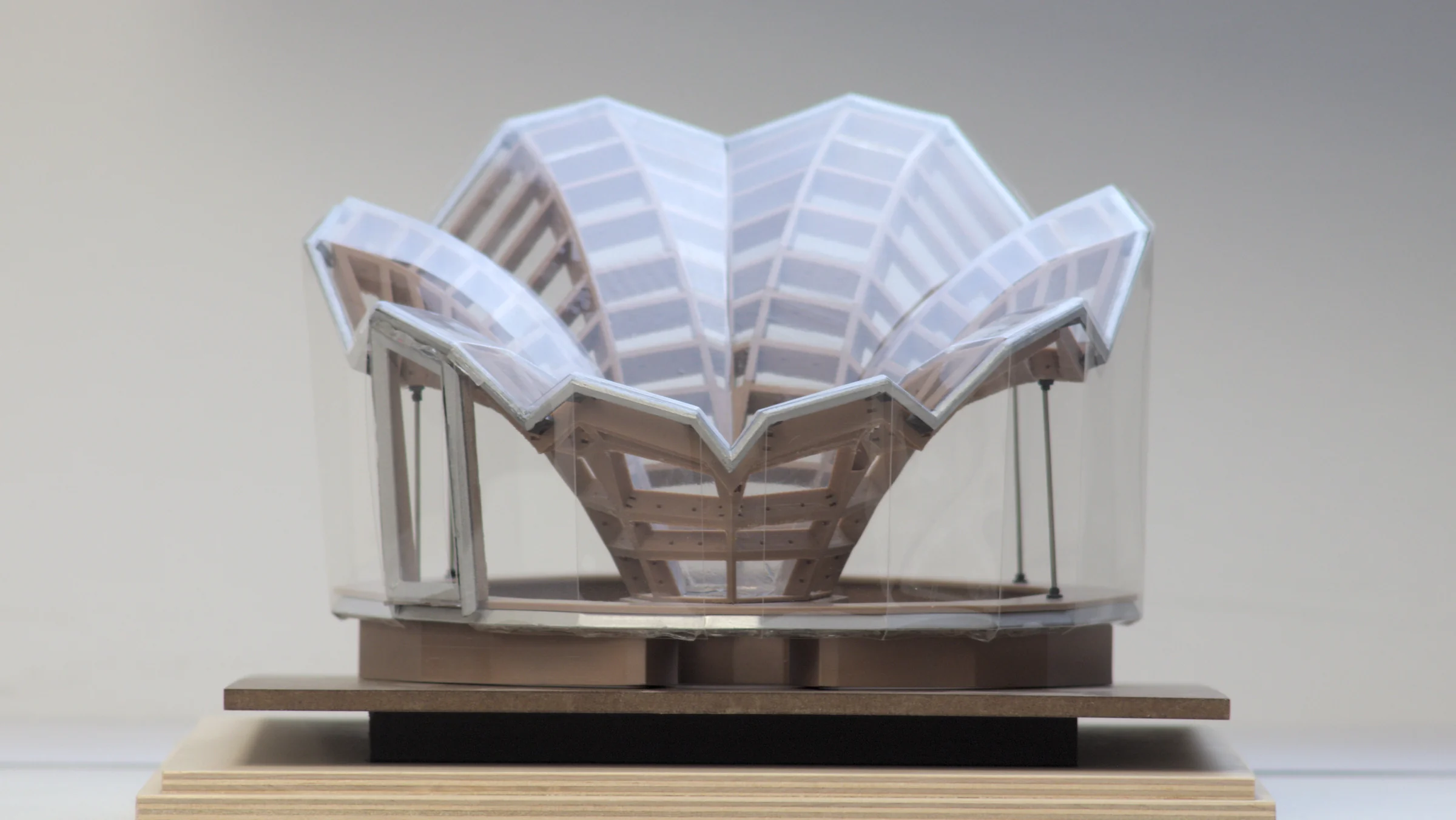

Model studies of the timber structure and enclosure.
